第三方数据DELPHI : TA5656

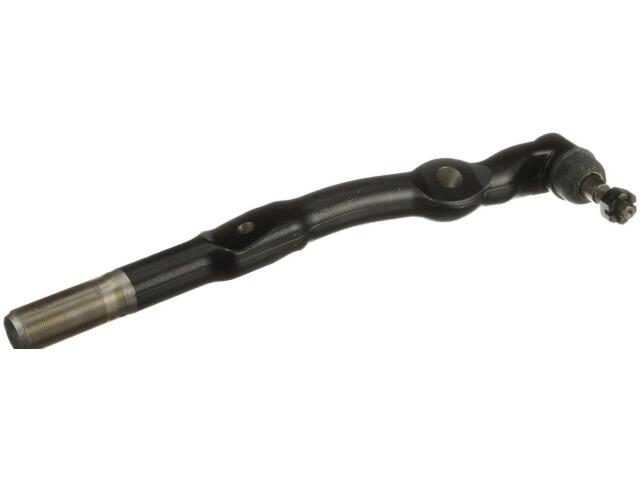

Tie Rod End
DELPHI : TA5656

Adjustable: Yes
Bearing Material: Polyoxymethilen (POM)
Color: Black
Cone Outside Diameter (IN): 0.724
Dust Boot: Yes
Dust Boot Material: Choloroprene Rubber (CR)
End 1 Gender: Male
End 1 Thread Diameter (IN): 1.375
End 1 Thread Direction: Clockwise (Right)
End 1 Threads Per Inch: 16
End 2 Gender: Male
End 2 Thread Diameter (MM): 16.0
End 2 Thread Direction: Clockwise (Right)
End 2 Thread Pitch (MM): 1.5
Finish: Coated
Greasable: Yes
Grease Fitting Included: Yes
Height (MM): 140.0
Housing Material: Steel
Length (MM): 502.9
Length Stud Center to End (IN): 19.764
Length Stud Center to End (mm): 502.0
Mounting Hardware Included: Yes
Position(s): Right Outer
Pre Greased: Yes
Stud Type: Threaded
Tie Rod Material: Steel
Type: BENT
Weight (lb): 1.39
Width (MM): 81.0

适用车型

DODGE (2)

RAM (2)

参考号

厂商	号码
MEVOTECH LP	MES80074*
MOOG	ES80074*

厂商	号码
PRECISION CHASSIS	ES80074*

厂商	号码
TRW AUTOMOTIVE	JTE164*

OE号码

品牌	号码
CHRYSLER	68041823A*

品牌	号码
MOPAR BRAND	68041823A*
