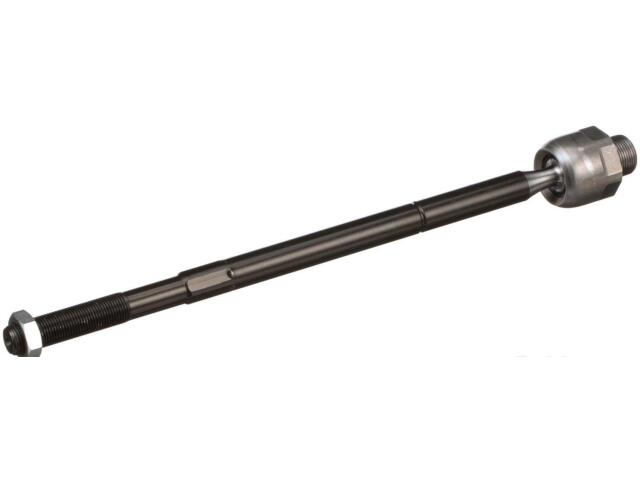

Tie Rod End
DELPHI : TA5484

Adjustable: Yes
Bearing Material: Polyoxymethilen (POM)
Color: Black
Dust Boot: No
End 1 Gender: Male
End 1 Thread Diameter (MM): 24.0
End 1 Thread Direction: Clockwise (Right)
End 1 Thread Pitch (MM): 1.5
End 2 Gender: Male
End 2 Thread Diameter (MM): 17.0
End 2 Thread Direction: Clockwise (Right)
End 2 Thread Pitch (MM): 1.5
Finish: Coated
Greasable: No
Grease Fitting Included: No
Height (MM): 42.0
Housing Material: Steel
Length (MM): 386.0
Length Stud Center to End (IN): 13.661
Length Stud Center to End (mm): 347.0
Mounting Hardware Included: Yes
Position(s): Inner
Pre Greased: Yes
Tie Rod Material: Steel
Tube Diameter (in): 0.709
Tube Diameter (mm): 18.0
Type: Straight
Weight (lb): 2.13
Width (MM): 42.0

适用车型

DODGE (1)

RAM (1)

参考号

厂商	号码
CARQUEST PREMIUM CHASSIS	700-29142*
CARQUEST RED/CHASSIS CANADA	RMS2570*
DORMAN PREMIUM	TI81320X*
FVP	TI8132*
MACPHERSON RIDE CHASSIS	3EV80009*
MAS INDUSTRIES	TI8132*

厂商	号码
MAS INDUSTRIES	TI81320R*
MEVOTECH LP	MS2570*
MEVOTECH LP	GS2570*
MEVOTECH ORIGINAL GRADE	GS2570*
MOOG	EV80009*

厂商	号码
PARTS PLUS CHASSIS	PMS2570*
PRECISION CHASSIS	EV80009*
PRO-SERIES OE PLUS	TI81320X*
QUALITY AUTOMOTIVE PRODUCTS	GGS2570*
TRW AUTOMOTIVE	JAR121*

OE号码

品牌	号码
CHRYSLER	55366383A*
MOPAR BRAND	55366383A*

品牌	号码
CHRYSLER	55366385A*
MOPAR BRAND	55366385A*

品牌	号码
CHRYSLER	68032265A*
MOPAR BRAND	68032265A*
