DELPHI
TA5428

第三方数据DELPHI : TA5428

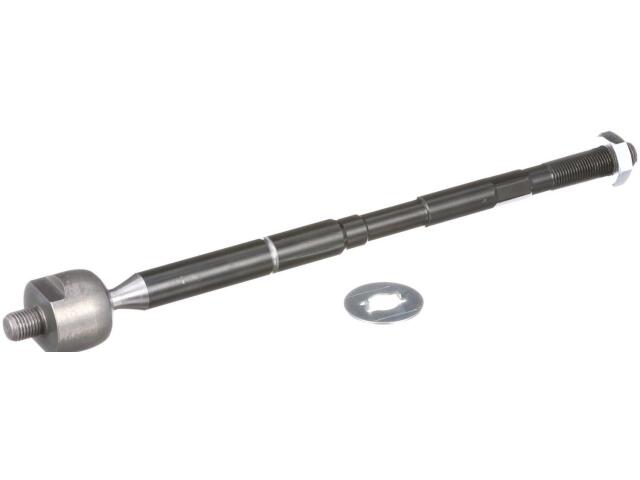

Tie Rod End
DELPHI : TA5428

Adjustable: Yes
Bearing Material: Polyoxymethilen (POM)
Color: Black
Dust Boot: No
End 1 Gender: Male
End 1 Thread Diameter (MM): 14.0
End 1 Thread Direction: Clockwise (Right)
End 1 Thread Pitch (MM): 1.5
End 2 Gender: Male
End 2 Thread Diameter (MM): 15.0
End 2 Thread Direction: Clockwise (Right)
End 2 Thread Pitch (MM): 1.5
Finish: Coated
Greasable: No
Grease Fitting Included: No
Height (MM): 37.0
Housing Material: Steel
Length (MM): 334.9
Length Stud Center to End (IN): 11.772
Length Stud Center to End (mm): 299.0
Mounting Hardware Included: Yes
Position(s): Inner
Pre Greased: Yes
Tie Rod Material: Steel
Tube Diameter (in): 0.709
Tube Diameter (mm): 18.0
Type: Straight
Weight (lb): 1.49
Width (MM): 37.0

适用车型

SCION (1)

参考号

厂商	号码
AUTOZONE/BECK ARNLEY	101-572*
BECK/ARNLEY	101-572*
DORMAN	535-19*
DORMAN PREMIUM	TI71010X*
FVP	TI7101*

厂商	号码
MAS BASE	535-19*
MAS INDUSTRIES	535-19*
MAS INDUSTRIES	TI7101*
MAS PREMIUM XL/RD	TI71010X*
MEVOTECH LP	MS8671*

厂商	号码
MEVOTECH LP	GS8671*
MOOG	EV80009*
PARTS PLUS CHASSIS	PMS8671*
TRW AUTOMOTIVE	JAR760*

OE号码

品牌	号码
TOYOTA	455032982*
