ASTRA
45A2392

第三方数据ASTRA : 45A2392

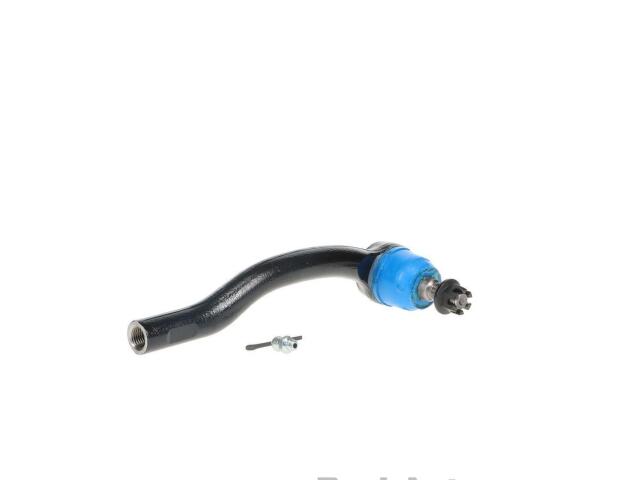

Tie Rod End
ASTRA : 45A2392

Adjustable: No
Color: Black
Dust Boot Included: Yes
End 1 Gender: Female
End 1 Thread Diameter (MM): 14
End 1 Thread Direction: Clockwise (Right)
End 1 Thread Pitch (MM): 1.5
End 2 Gender: Male
End 2 Thread Diameter (MM): 12
End 2 Thread Direction: Clockwise (Right)
End 2 Thread Pitch (MM): 1.25
Finish: Coated
Grease Fitting Included: Yes
Greaseable: Yes
Height (IN): 3
Height (MM): 76.2
Length (IN): 10.7
Length (MM): 271.78
Length - Stud Center to End (IN): 8.11
Length - Stud Center to End (MM): 206
Mounting Hardware Included: Yes
Pre-Greased: Yes
Stud Type: Tapered, Threaded
Tie Rod Material: Steel
Type: BENT
Weight (lb): 2.3
Width (IN): 4
Width (MM): 101.6

适用车型

MAZDA (2)

CX-7 (2)

CX-9 (2)

OE号码

品牌	号码
OE	1946248*

品牌	号码
OE	1929677*
