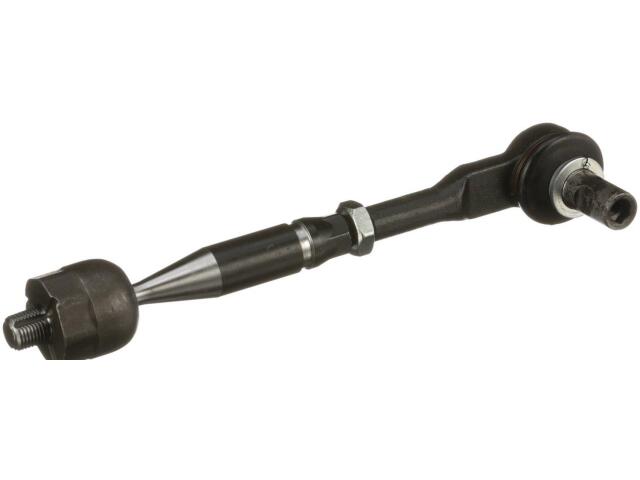

Tie Rod Assembly (Inner & Outer)
DELPHI : TL615

Adjustable: Yes
Color: Black
Dust Boot: Yes
Dust Boot Material: Choloroprene Rubber (CR)
End 1 Gender: Female
End 1 Thread Diameter (IN): 0.315
End 1 Thread Diameter (MM): 8.0
End 1 Thread Direction: Clockwise (Right)
End 1 Thread Pitch (MM): 1.25
End 2 Gender: Male
End 2 Thread Diameter (IN): 0.63
End 2 Thread Diameter (MM): 16.0
End 2 Thread Direction: Clockwise (Right)
End 2 Thread Pitch (MM): 1.5
Finish: Cataphoresis / Phosphate
Greasable: No
Grease Fitting Included: No
Length Stud Center to End (IN): 11.024
Length Stud Center to End (mm): 280.0
Mounting Hardware Included: Yes
Position(s): Front
Tie Rod Material: Steel
Type: Straight

适用车型

AUDI (1)

参考号

厂商	号码
BECK/ARNLEY	101-439*
MEVOTECH LP	MS7060*
MEVOTECH ORIGINAL GRADE HUBS	MS7060*

厂商	号码
MOOG	ES80026*
O'REILLY/MOOG CHASSIS	ES80026*

厂商	号码
TRW	JTE102*
TRW AUTOMOTIVE	JTE102*

OE号码

品牌	号码
AUDI	4F0419811*
