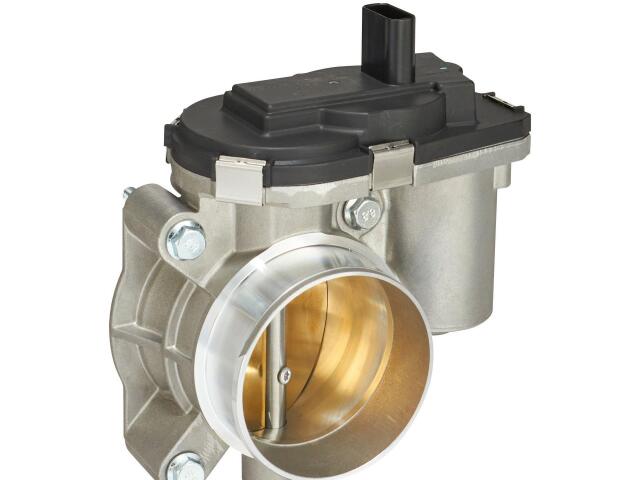

Throttle Body
SPECTRA PREMIUM : TB1295

Air Intake Port Maximum Diameter (IN): 2-13/16
Connector Color: Black
Connector Quantity: 1
Connector Shape: Rectangular
Fuel System Type: FI
Gaskets Included: No
Housing Color / Finish: Gray
Housing Length (IN): 6-1/4
Housing Material: Metal
Housing Width (IN): 5-3/8
Idle Air Control Motor Included: No
Main Port Inside Diameter (IN): 2-9/16
Mount Hole Quantity: 4
Package Contents: Fuel Injection Throttle Body Assembly, Instruction Manual
Terminal Gender: Male
Terminal QTY: 6
Terminal Type: Pin
Throttle Body Actuation Type: Electric
Throttle Body Inlet Shape: Circle
Throttle Body Outlet Shape: Circle
Throttle Plate Diameter (IN): 2-9/16
Throttle Position Sensor Included: Yes

适用车型

BUICK (3)

CHEVROLET (5)

GMC (1)

OE号码

品牌	号码
OE	1263210*

品牌	号码
OE	1266914*

品牌	号码
OE	1267083*
