GM GENUINE
2173424

第三方数据GM GENUINE : 2173424

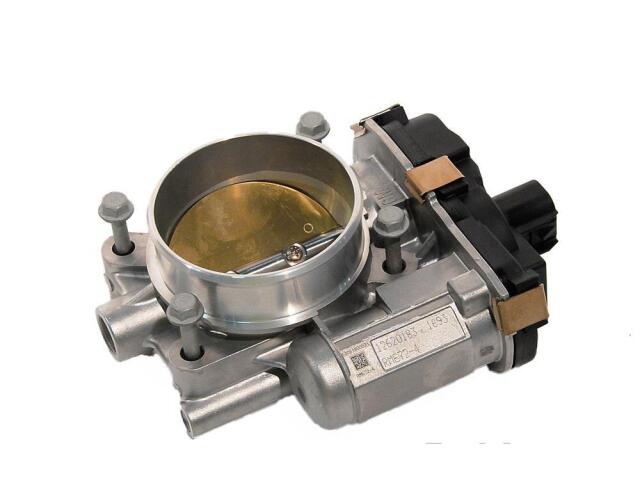

Throttle Body
GM GENUINE : 2173424

Adjustable: No
Bore Diameter (IN): 2.83
Bore Diameter (MM): 72
Connector Gender: Female
Connector Shape: Rectangular
Fuel Injectors Included: No
Fuel System Grade: Regular
Fuel System Injection Type: Sequential Fuel Injection
Fuel System Type: Electronic Fuel Injection
Gasket or Seal Included: No
Housing Width (IN): 2.36
Housing Width (MM): 60
Idle Air Control Motor Included: Yes
Inlet Diameter (IN): 2.83
Inlet Diameter (MM): 72
Inlet Type: Straight
Main Port Inside Diameter (IN): 2.91
Main Port Outside Diameter (in): 3.07
Mount Hole Quantity: 4
Mounting Hardware Included: Yes
Outlet Diameter (IN): 2.87
Outlet Diameter (MM): 73
Outlet Quantity: 1
Outlet Type: Flanged
Programming Required: Yes
Terminal Gender: Male
Terminal Quantity: 6
Terminal Type: Blade
Throttle Body Finish: Natural
Throttle Body Material: Aluminum
Throttle Body Spacer Included: No
Throttle Position Sensor Included: Yes

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	217-342*

品牌	号码
OE	1262018*

品牌	号码
OE	1942070*
