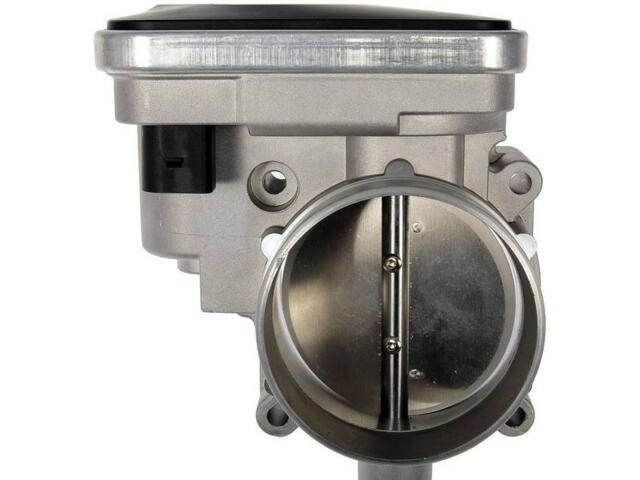

Throttle Body
DORMAN : 977782

Adjustable: No
Airflow Rate (2L): 130
Bore Diameter (MM): 80
Connector/Terminal Type: Blade
Electrical Connection Type: Male
Fuel Injectors Included: No
Fuel System Grade: Gas
Fuel System Injection Type: Gas
Fuel System Type: Gas
Gasket or Seal Included: No
Housing Color: Natural
Housing Material: Cast Aluminum
Idle Air Control Motor Included: No
Inlet Diameter (MM): 88.0
Inlet Quantity: 1
Inlet Type: Flanged
Installation Hardware Included: No
Mounting Hardware Included: No
Outlet Diameter (MM): 81.00
Outlet Quantity: 1
Outlet Type: Non-flanged
Package Contents: 1 Throttle Body Unit
Terminal Count: M6 -1.0
Throttle Body Finish: Silver
Throttle Body Material: Aluminum
Throttle Body Mounted: No
Throttle Body Spacer Included: No
Throttle Body Type: Electronic
Throttle Position Sensor Included: Yes

适用车型

CHRYSLER (1)

DODGE (4)

DURANGO (1)

RAM 1500 PICKUP (1)

RAM 2500 PICKUP (1)

RAM 3500 PICKUP (1)

RAM (3)

OE号码

品牌	号码
OE	977-78*
OE	5174079A*

品牌	号码
OE	53032801A*
OE	53032801A*

品牌	号码
OE	53032801A*
OE	68060353A*
