ASTRA
25183237

第三方数据ASTRA : 25183237

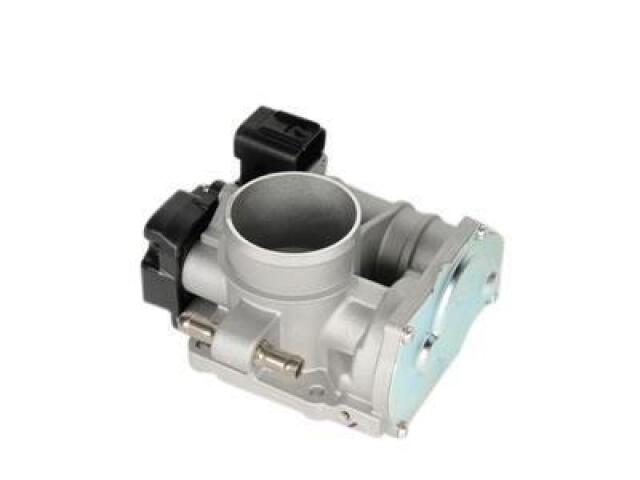

Throttle Body
ASTRA : 25183237

Bore Diameter (IN): 2.048
Bore Diameter (MM): 52.02
Fuel Injectors Included: No
Fuel System Injection Type: Multi-Port Fuel Injection
Fuel System Type: Gasoline Fuel Injection
Gasket or Seal Included: No
Height (IN): 5
Idle Air Control Motor Included: Yes
Inlet Diameter (IN): 2.154
Inlet Diameter (MM): 54.72
Inlet Header Length (MM): 54.72
Inlet Type: Round
Length (IN): 6.5
Original Equipment Replacement: Yes
Outlet Diameter (IN): 2.142
Outlet Diameter (MM): 54.4
Outlet Type: Round
Programming Required: Yes
Throttle Body Finish: Natural
Throttle Body Material: Cast Aluminum
Throttle Body Spacer Included: No
Throttle Position Sensor Included: Yes
Weight (lb): 2.85
Width (IN): 6.38

适用车型

CHEVROLET (2)

PONTIAC (2)

OE号码

品牌	号码
OE	2518198*
