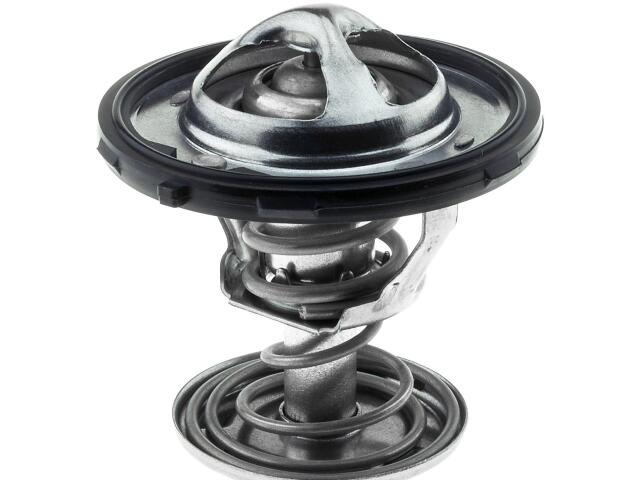

Thermostat
MOTORAD : 5523187

Bypass Flange Diameter (IN): 1.58
Bypass Flange Length (IN): 2.12
Color: Silver
Design: OEM
Electric: No
Engine Coolant Thermostat Quantity: 1
Flange Height (IN): 0.05
Flange Thickness (IN): 0.05
Gasket Or Seal Material: Rubber
Gasket or Seal Included: Yes
Gasket/Seal Preinstalled: Yes
Grade Type: OEM
Height (IN): 2.70
Height Between Flanges (in): 1.89
Includes Jiggle Pin Check Valve: Yes
Installation Tool Included: No
Jiggle Pin Check Valve Quantity: 1
Jiggle Pin Weep Hole: Yes
Mounting Depth From Flange: 1.89 IN
Outlet Inside Diameter (IN): 0.00
Outlet Outside Diameter (IN): 0.00
Seal Material: Rubber
Seal Quantity: 1
Seal Type: O-Ring
Sealing Flange Outside Diameter (IN): 2.20
Start to Open Temperature (FA): 187.0
Type: Standard

适用车型

CHEVROLET (2)
