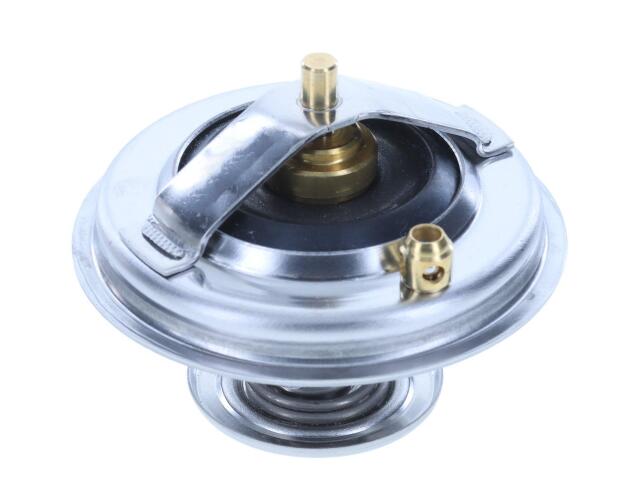

Thermostat
MOTORAD : 304176

Bypass Flange Diameter (IN): 1.38
Bypass Flange Length (IN): 1.38
Color: Silver
Depth (IN): 1.21
Design: OEM
Electric: No
Engine Coolant Thermostat Quantity: 1
Flange Height (IN): 0.09
Flange Thickness (IN): 0.09
Gasket or Seal Included: No
Gasket/Seal Preinstalled: No
Height (IN): 2.16
Height Between Flanges (in): 1.21
Height From Flange: 0.79 IN
Installation Tool Included: No
Jiggle Pin Check Valve Quantity: 1
Jiggle Pin Weep Hole: Yes
Material: Rubber
Mounting Depth From Flange: 1.21 in
Sealing Flange Outside Diameter (IN): 2.62
Start to Open Temperature (FA): 176.0
Type: Standard
Valve Outside Diameter (in): 0.29

适用车型

VOLKSWAGEN (3)

AUDI (7)

ALLROAD (1)

A3 (1)

TT (1)

A8 (2)

Q7 (2)

S6 (1)

S8 (1)

OE号码

品牌	号码
OE	304-17*

品牌	号码
OE	02212111*

品牌	号码
OE	075121113*
