MOTORAD
1333196

第三方数据MOTORAD : 1333196

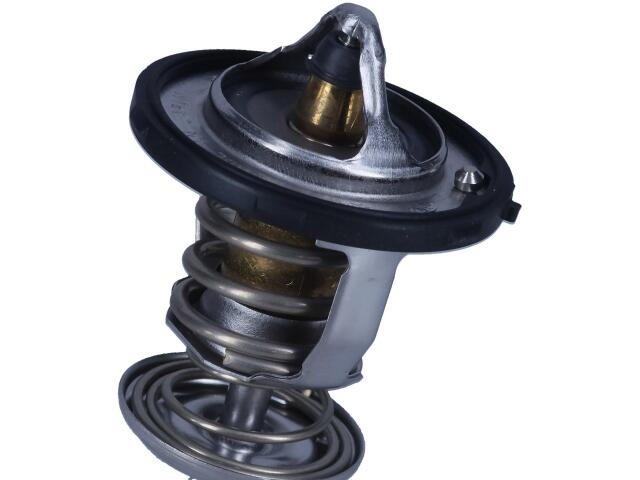

Thermostat
MOTORAD : 1333196

Bypass Flange Diameter (IN): 1.59
Bypass Flange Length (IN): 1.59
Color: Silver
Depth (IN): 2.06
Design: OEM
Electric: No
Engine Coolant Thermostat Quantity: 1
Flange Height (IN): 0.05
Flange Thickness (IN): 0.05
Gasket Or Seal Material: Rubber
Gasket or Seal Included: Yes
Gasket or Seal Preinstalled: Yes
Grade Type: OEM
Height (IN): 3.13
Height Between Flanges (in): 1.85
Height From Flange: 0.94 IN
Includes Jiggle Pin Check Valve: Yes
Installation Tool Included: No
Jiggle Pin Check Valve Quantity: 1
Jiggle Pin Weep Hole: Yes
Material: Steel
Mounting Depth From Flange: 2.06 IN
Seal Material: Rubber
Seal Quantity: 1
Seal Type: O-Ring
Sealing Flange Outside Diameter (IN): 2.20
Start to Open Temperature (FA): 196.0
Type: Standard

适用车型

CHEVROLET (6)

COLORADO (1)

EXPRESS 2500 (2)

EXPRESS 3500 (2)

SILVERADO 1500 LTD (1)

EXPRESS 4500 (1)

LCF (1)

GMC (4)

OE号码

品牌	号码
OE	1942081*
