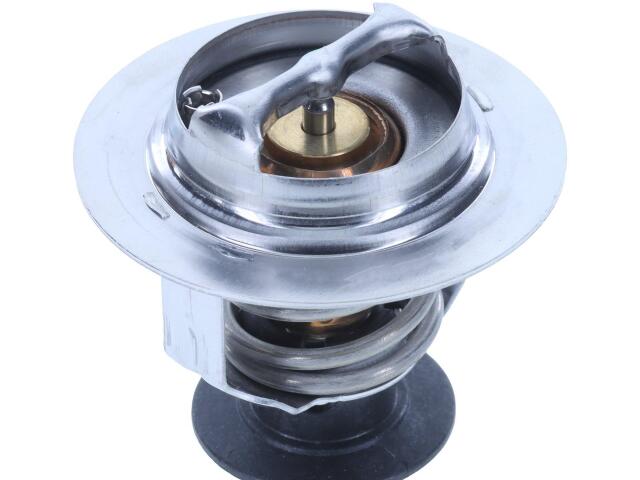

Thermostat
MOTORAD : 1272195

Bypass Flange Diameter (IN): 1.34
Bypass Flange Length (IN): 1.34
Depth (IN): 1.77
Design: OEM
Electric: No
Engine Coolant Thermostat Quantity: 1
Flange Height (IN): 0.04
Flange Thickness (IN): 0.04
Gasket or Seal Included: No
Gasket/Seal Preinstalled: No
Grade Type: OEM
Height (IN): 2.33
Height Between Flanges (in): 1.77
Height From Flange: 0.55 IN
Includes Jiggle Pin Check Valve: Yes
Installation Tool Included: No
Jiggle Pin Check Valve Quantity: 1
Jiggle Pin Weep Hole: Yes
Material: Plastic
Mounting Depth From Flange: 1.77 IN
Outlet Inside Diameter (IN): 0.00
Outlet Outside Diameter (IN): 0.00
Sealing Flange Outside Diameter (IN): 2.40
Start to Open Temperature (FA): 195.0
Type: Standard
Valve Outside Diameter (in): 1.34

适用车型

FORD (2)

LINCOLN (1)

OE号码

品牌	号码
OE	ML3Z8575*
