第三方数据MOTORAD : 1024194

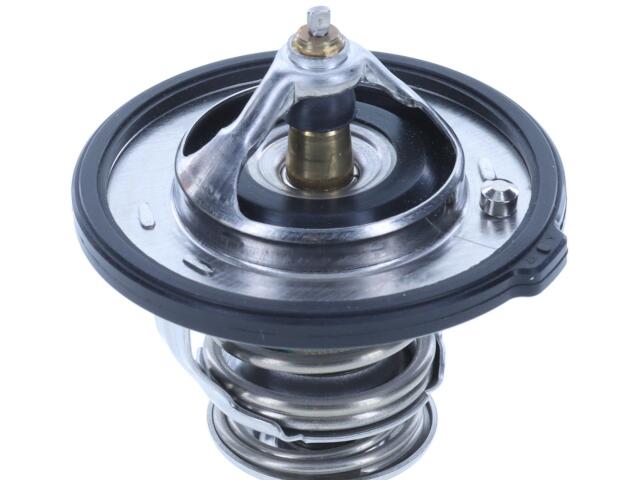

Thermostat
MOTORAD : 1024194

Bypass Flange Diameter (IN): 1.10
Bypass Flange Length (IN): 1.10
Color: Silver
Depth (IN): 1.68
Design: OEM
Electric: No
Engine Coolant Thermostat Quantity: 1
Flange Height (IN): 0.20
Flange Thickness (IN): 0.04
Gasket Or Seal Material: Rubber
Gasket or Seal Included: Yes
Gasket or Seal Preinstalled: Yes
Height (IN): 2.66
Height Between Flanges (in): 1.68
Height From Flange: 1.01 IN
Installation Tool Included: No
Jiggle Pin Check Valve Quantity: 1
Jiggle Pin Weep Hole: Yes
Material: Rubber
Mounting Depth From Flange: 1.68 IN
Seal Material: Rubber
Seal Quantity: 1
Seal Type: O-Ring
Sealing Flange Outside Diameter (IN): 2.27
Start to Open Temperature (FA): 194.0
Type: Standard
Valve Outside Diameter (in): 0.39

适用车型

HYUNDAI (1)

OE号码

品牌	号码
OE	255002E27*
