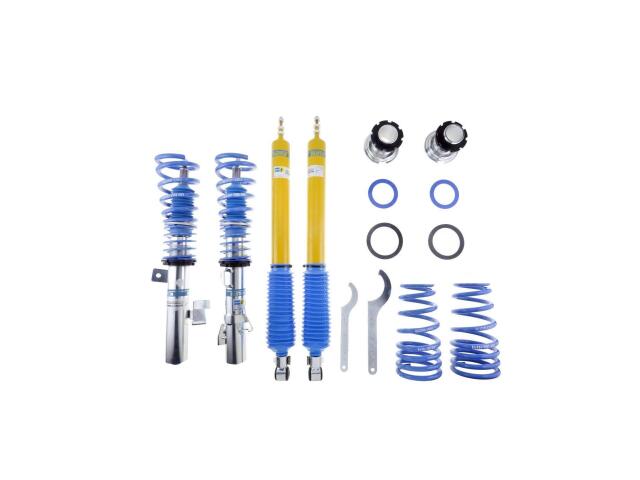

Suspension Kit
GEO : 48121262

  • Dampers: Zinc Front Yellow Rear/Springs: Blue
  • Monotube
  • B16 (PSS9)

适用车型

MAZDA
3
2.0L L4
2005
B16 (PSS9)
Front and Rear; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2006
B16 (PSS9)
Front and Rear; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2007
B16 (PSS9)
Front and Rear; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2008
B16 (PSS9)
Front and Rear; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2009
B16 (PSS9)
Front and Rear; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2010
B16 (PSS9)
Front and Rear; i Model; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2011
B16 (PSS9)
Front and Rear; i Model; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2012
B16 (PSS9)
Front and Rear; i Model; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2013
B16 (PSS9)
Front and Rear; i Model; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2.3L L4
2005
B16 (PSS9)
Front and Rear; S Model or SP23 Model; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2006
B16 (PSS9)
Front and Rear; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2007
B16 (PSS9)
Front and Rear; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2008
B16 (PSS9)
Front and Rear; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2009
B16 (PSS9)
Front and Rear; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2.3L L4 Turbocharged
2007
B16 (PSS9)
Front and Rear; Front Lowered Height: 10-25mm, up to 1100kg Axle Load; Rear Lowered Height: 5-25mm, up to 1090kg Axle Load
2008
B16 (PSS9)
Front and Rear; Front Lowered Height: 10-25mm, up to 1100kg Axle Load; Rear Lowered Height: 5-25mm, up to 1090kg Axle Load
2009
B16 (PSS9)
Front and Rear; Front Lowered Height: 10-25mm, up to 1100kg Axle Load; Rear Lowered Height: 5-25mm, up to 1090kg Axle Load
2010
B16 (PSS9)
Front and Rear; Front Lowered Height: 10-25mm, up to 1100kg Axle Load; Rear Lowered Height: 5-25mm, up to 1090kg Axle Load
2011
B16 (PSS9)
Front and Rear; Front Lowered Height: 10-25mm, up to 1100kg Axle Load; Rear Lowered Height: 5-25mm, up to 1090kg Axle Load
2012
B16 (PSS9)
Front and Rear; Front Lowered Height: 10-25mm, up to 1100kg Axle Load; Rear Lowered Height: 5-25mm, up to 1090kg Axle Load
2013
B16 (PSS9)
Front and Rear; Front Lowered Height: 10-25mm, up to 1100kg Axle Load; Rear Lowered Height: 5-25mm, up to 1090kg Axle Load
2.5L L4
2010
B16 (PSS9)
Front and Rear; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2011
B16 (PSS9)
Front and Rear; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2012
B16 (PSS9)
Front and Rear; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2013
B16 (PSS9)
Front and Rear; Front Lowered Height: 25-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
VOLVO
S40
2.4L L5
2005
B16 (PSS9)
Front and Rear; Front Lowered Height: 35-50mm, up to 1100kg Axle Load; Rear Lowered Height: 35-50mm, up to 1090kg Axle Load
2006
B16 (PSS9)
Front and Rear; Front Lowered Height: 35-50mm, up to 1100kg Axle Load; Rear Lowered Height: 35-50mm, up to 1090kg Axle Load
2007
B16 (PSS9)
Front and Rear; Front Lowered Height: 35-50mm, up to 1100kg Axle Load; Rear Lowered Height: 35-50mm, up to 1090kg Axle Load
2008
B16 (PSS9)
Front and Rear; Front Lowered Height: 35-50mm, up to 1100kg Axle Load; Rear Lowered Height: 35-50mm, up to 1090kg Axle Load
2009
B16 (PSS9)
Front and Rear; Front Lowered Height: 35-50mm, up to 1100kg Axle Load; Rear Lowered Height: 35-50mm, up to 1090kg Axle Load
2010
B16 (PSS9)
Front and Rear; Front Lowered Height: 35-50mm, up to 1100kg Axle Load; Rear Lowered Height: 35-50mm, up to 1090kg Axle Load
2.5L L5 Turbocharged
2005
B16 (PSS9)
Front and Rear; FWD; Front Lowered Height: 35-50mm, up to 1100kg Axle Load; Rear Lowered Height: 35-50mm, up to 1090kg Axle Load
2006
B16 (PSS9)
Front and Rear; FWD; Front Lowered Height: 35-50mm, up to 1100kg Axle Load; Rear Lowered Height: 35-50mm, up to 1090kg Axle Load
2007
B16 (PSS9)
Front and Rear; FWD; Front Lowered Height: 35-50mm, up to 1100kg Axle Load; Rear Lowered Height: 35-50mm, up to 1090kg Axle Load
2008
B16 (PSS9)
Front and Rear; FWD; Front Lowered Height: 35-50mm, up to 1100kg Axle Load; Rear Lowered Height: 35-50mm, up to 1090kg Axle Load
2009
B16 (PSS9)
Front and Rear; FWD; Front Lowered Height: 35-50mm, up to 1100kg Axle Load; Rear Lowered Height: 35-50mm, up to 1090kg Axle Load
2011
B16 (PSS9)
Fits Front and Rear; T5 Model; Front Lowered Height: 35-50mm, up to 1100kg Axle Load; Rear Lowered Height: 35-50mm, up to 1090kg Axle Loador Front and Rear; T5 R-Design; Front Lowered Height: 20-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
V50
2.4L L5
2005
B16 (PSS9)
Front and Rear; Front Lowered Height: 20-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2006
B16 (PSS9)
Front and Rear; Front Lowered Height: 20-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2007
B16 (PSS9)
Front and Rear; Front Lowered Height: 20-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2008
B16 (PSS9)
Front and Rear; Front Lowered Height: 20-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2009
B16 (PSS9)
Front and Rear; Front Lowered Height: 20-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2010
B16 (PSS9)
Front and Rear; Front Lowered Height: 20-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2.5L L5 Turbocharged
2005
B16 (PSS9)
Front and Rear; FWD; Front Lowered Height: 20-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2006
B16 (PSS9)
Front and Rear; FWD; Front Lowered Height: 20-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2007
B16 (PSS9)
Front and Rear; FWD; Front Lowered Height: 20-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2008
B16 (PSS9)
Front and Rear; FWD; Front Lowered Height: 20-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
2011
B16 (PSS9)
Front and Rear; Front Lowered Height: 20-40mm, up to 1100kg Axle Load; Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
C30
2.5L L5 Turbocharged
2008
B16 (PSS9)
Front and Rear; T5 Model; Front Lowered Height: 15-30mm, up to 1100kg Axle Load; Rear Lowered Height: 10-20mm, up to 1090kg Axle Load
2009
B16 (PSS9)
Front and Rear; T5 Model; Front Lowered Height: 15-30mm, up to 1100kg Axle Load; Rear Lowered Height: 10-20mm, up to 1090kg Axle Load
2010
B16 (PSS9)
Front and Rear; T5 Model; Front Lowered Height: 15-30mm, up to 1100kg Axle Load; Rear Lowered Height: 10-20mm, up to 1090kg Axle Load
2011
B16 (PSS9)
Front and Rear; T5 Model; Front Lowered Height: 15-30mm, up to 1100kg Axle Load; Rear Lowered Height: 10-20mm, up to 1090kg Axle Load
2012
B16 (PSS9)
Front and Rear; Front Lowered Height: 15-30mm, up to 1100kg Axle Load; Rear Lowered Height: 10-20mm, up to 1090kg Axle Load
2013
B16 (PSS9)
Front and Rear; Front Lowered Height: 15-30mm, up to 1100kg Axle Load; Rear Lowered Height: 10-20mm, up to 1090kg Axle Load

参考号

厂商 号码
AUTOZONE INC 46847*
GEO F4-GM5-C126-H*
GEO GM5-C12*
GEO 3527501*
GEO 3526701*
GEO 3527500*
厂商 号码
GEO 3527501*
GEO 3526701*
K-W PRODS 3526701*
K-W PRODS 3527501*
K-W PRODS 3527500*
K-W PRODS 3526701*
厂商 号码
K-W PRODS 3527501*
KW 3527501*
KW 3526701*
KW 3527500*
KW 3527501*
KW 3526701*

OE号码

品牌 号码
OE 48-12126*
