ARNOTT
AS2893

第三方数据ARNOTT : AS2893

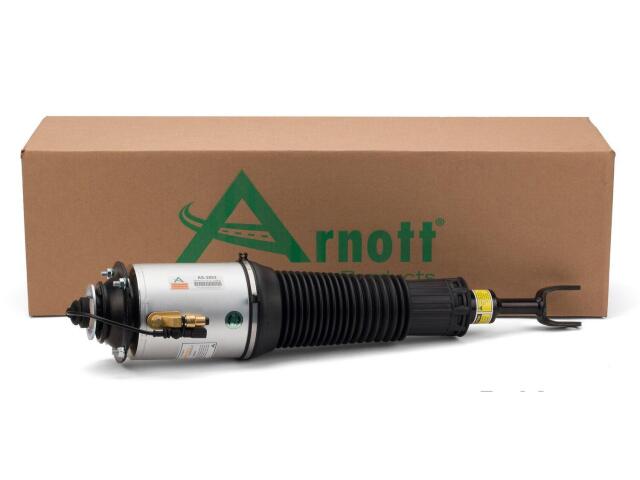

Shock / Strut
ARNOTT : AS2893

Adjustable: No
Adjustable Damping: No
Air Adjustable: Yes
Air Bladder: Yes
Air Bladder Material: Rubber
Air Ride Suspension: Yes
Bearing Plate Included: No
Body End Measuring Point: Center Eye
Boot Color: Black
Boot/dust Shield Included: Yes
Compressed Length (MM): 486
Contents: Air Shock Assembly; Mounting Hardware
Dust Shield Material: Rubber
Extended Length (MM): 630
Gas Charged: Yes
Heavy Duty Crimping Rings: Yes
Internal Construction Type: Twin Tube
Internal Damper Type: Hydraulic
Lower Mount Type: Clevis
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
Progressive Spring Rate: Yes
Protective Aluminum Can: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Shock/strut Design: Twin Tube
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: Yes
Springs Included: Yes
Travel Length (MM): 144
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes

适用车型

VOLKSWAGEN (1)

BENTLEY (2)

CONTINENTAL (2)

4.0L V8 Turbocharged (5)

6.0L W12 Turbocharged (14)

2005	Air Strut Front Left 3D0616039, 3D0616039AA, 3D0616039AB, 3D0616039AC, 3D0616039AD, 3D0616039G, 3D0616039L, 3D0616039M, 3D0616039N, 3D0616039P, 3D0616039Q, 3D0616039S, 3D0616039T, 3D5616039, 3D7616039, 3W0616039, 3W0616039C, 3W0616039D, 3W0616039H, 3W0616039J, 3W0616039K, 3W5616039, 3W7616039

2006	Air Strut Front Left 3D0616039, 3D0616039AA, 3D0616039AB, 3D0616039AC, 3D0616039AD, 3D0616039G, 3D0616039L, 3D0616039M, 3D0616039N, 3D0616039P, 3D0616039Q, 3D0616039S, 3D0616039T, 3D5616039, 3D7616039, 3W0616039, 3W0616039C, 3W0616039D, 3W0616039H, 3W0616039J, 3W0616039K, 3W5616039, 3W7616039

2007	Air Strut Front Left 3D0616039, 3D0616039AA, 3D0616039AB, 3D0616039AC, 3D0616039AD, 3D0616039G, 3D0616039L, 3D0616039M, 3D0616039N, 3D0616039P, 3D0616039Q, 3D0616039S, 3D0616039T, 3D5616039, 3D7616039, 3W0616039, 3W0616039C, 3W0616039D, 3W0616039H, 3W0616039J, 3W0616039K, 3W5616039, 3W7616039

2008	Air Strut Front Left 3D0616039, 3D0616039AA, 3D0616039AB, 3D0616039AC, 3D0616039AD, 3D0616039G, 3D0616039L, 3D0616039M, 3D0616039N, 3D0616039P, 3D0616039Q, 3D0616039S, 3D0616039T, 3D5616039, 3D7616039, 3W0616039, 3W0616039C, 3W0616039D, 3W0616039H, 3W0616039J, 3W0616039K, 3W5616039, 3W7616039

2009	Air Strut Front Left 3D0616039, 3D0616039AA, 3D0616039AB, 3D0616039AC, 3D0616039AD, 3D0616039G, 3D0616039L, 3D0616039M, 3D0616039N, 3D0616039P, 3D0616039Q, 3D0616039S, 3D0616039T, 3D5616039, 3D7616039, 3W0616039, 3W0616039C, 3W0616039D, 3W0616039H, 3W0616039J, 3W0616039K, 3W5616039, 3W7616039

2010	Air Strut Front Left 3D0616039, 3D0616039AA, 3D0616039AB, 3D0616039AC, 3D0616039AD, 3D0616039G, 3D0616039L, 3D0616039M, 3D0616039N, 3D0616039P, 3D0616039Q, 3D0616039S, 3D0616039T, 3D5616039, 3D7616039, 3W0616039, 3W0616039C, 3W0616039D, 3W0616039H, 3W0616039J, 3W0616039K, 3W5616039, 3W7616039

2011	Air Strut Front Left 3D0616039, 3D0616039AA, 3D0616039AB, 3D0616039AC, 3D0616039AD, 3D0616039G, 3D0616039L, 3D0616039M, 3D0616039N, 3D0616039P, 3D0616039Q, 3D0616039S, 3D0616039T, 3D5616039, 3D7616039, 3W0616039, 3W0616039C, 3W0616039D, 3W0616039H, 3W0616039J, 3W0616039K, 3W5616039, 3W7616039

2012	Air Strut Front Left 3D0616039, 3D0616039AA, 3D0616039AB, 3D0616039AC, 3D0616039AD, 3D0616039G, 3D0616039L, 3D0616039M, 3D0616039N, 3D0616039P, 3D0616039Q, 3D0616039S, 3D0616039T, 3D5616039, 3D7616039, 3W0616039, 3W0616039C, 3W0616039D, 3W0616039H, 3W0616039J, 3W0616039K, 3W5616039, 3W7616039

2013	Air Strut Front Left 3D0616039, 3D0616039AA, 3D0616039AB, 3D0616039AC, 3D0616039AD, 3D0616039G, 3D0616039L, 3D0616039M, 3D0616039N, 3D0616039P, 3D0616039Q, 3D0616039S, 3D0616039T, 3D5616039, 3D7616039, 3W0616039, 3W0616039C, 3W0616039D, 3W0616039H, 3W0616039J, 3W0616039K, 3W5616039, 3W7616039

2014	Air Strut Front Left 3D0616039, 3D0616039AA, 3D0616039AB, 3D0616039AC, 3D0616039AD, 3D0616039G, 3D0616039L, 3D0616039M, 3D0616039N, 3D0616039P, 3D0616039Q, 3D0616039S, 3D0616039T, 3D5616039, 3D7616039, 3W0616039, 3W0616039C, 3W0616039D, 3W0616039H, 3W0616039J, 3W0616039K, 3W5616039, 3W7616039

2015	Air Strut Front Left 3D0616039, 3D0616039AA, 3D0616039AB, 3D0616039AC, 3D0616039AD, 3D0616039G, 3D0616039L, 3D0616039M, 3D0616039N, 3D0616039P, 3D0616039Q, 3D0616039S, 3D0616039T, 3D5616039, 3D7616039, 3W0616039, 3W0616039C, 3W0616039D, 3W0616039H, 3W0616039J, 3W0616039K, 3W5616039, 3W7616039

2016	Air Strut Front Left 3D0616039, 3D0616039AA, 3D0616039AB, 3D0616039AC, 3D0616039AD, 3D0616039G, 3D0616039L, 3D0616039M, 3D0616039N, 3D0616039P, 3D0616039Q, 3D0616039S, 3D0616039T, 3D5616039, 3D7616039, 3W0616039, 3W0616039C, 3W0616039D, 3W0616039H, 3W0616039J, 3W0616039K, 3W5616039, 3W7616039

2017	Air Strut Front Left 3D0616039, 3D0616039AA, 3D0616039AB, 3D0616039AC, 3D0616039AD, 3D0616039G, 3D0616039L, 3D0616039M, 3D0616039N, 3D0616039P, 3D0616039Q, 3D0616039S, 3D0616039T, 3D5616039, 3D7616039, 3W0616039, 3W0616039C, 3W0616039D, 3W0616039H, 3W0616039J, 3W0616039K, 3W5616039, 3W7616039

2018	Air Strut Front Left 3D0616039, 3D0616039AA, 3D0616039AB, 3D0616039AC, 3D0616039AD, 3D0616039G, 3D0616039L, 3D0616039M, 3D0616039N, 3D0616039P, 3D0616039Q, 3D0616039S, 3D0616039T, 3D5616039, 3D7616039, 3W0616039, 3W0616039C, 3W0616039D, 3W0616039H, 3W0616039J, 3W0616039K, 3W5616039, 3W7616039

FLYING SPUR (1)

参考号

厂商	号码
AUTOPART INTERNATIONAL	2721-10632*

OE号码

品牌	号码
OE	AS-289*
OE	3D061603*
OE	3D0616039A*
OE	3D0616039A*
OE	3D0616039A*
OE	3D0616039A*
OE	3D0616039*
OE	3D0616039*

品牌	号码
OE	3D0616039*
OE	3D0616039*
OE	3D0616039*
OE	3D0616039*
OE	3D0616039*
OE	3D0616039*
OE	3D561603*
OE	3D761603*

品牌	号码
OE	3W061603*
OE	3W0616039*
OE	3W0616039*
OE	3W0616039*
OE	3W0616039*
OE	3W0616039*
OE	3W561603*
OE	3W761603*
