ASTRA
530312

第三方数据ASTRA : 530312

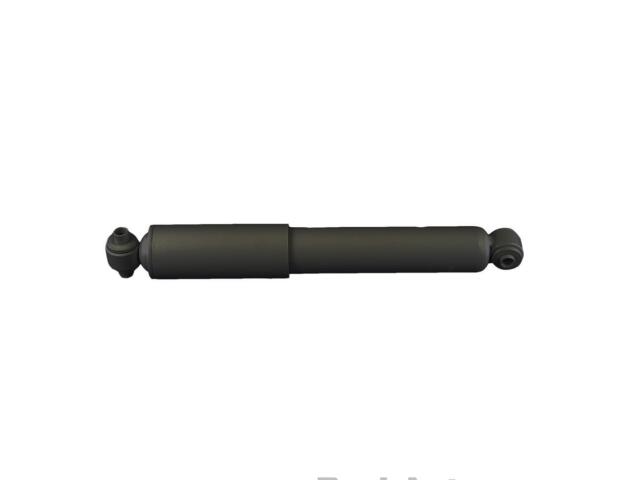

Shock / Strut
ASTRA : 530312

Adjustable: No
Body Diameter (IN): 2
Body Diameter (MM): 50.8
Boot Included: No
Coil Over Springs Included: No
Compressed Length (IN): 10.95
Compressed Length (MM): 278.892
Dust Shield: No
Fully Open Length (IN): 16.51in
Fully Open Length (mm): 419.354mm
Gas Charged: Yes
Height (IN): 3.2
Length (IN): 19.9
Lower Mount Type: Eyelet
Mounting Hardware Included: No
Programming Required: No
Shock Absorber Body End Measuring Point: Center Eye
Shock Absorber Rod End Measuring Point: Center Eye
Shock Stroke (mm): 146.81
Travel Length (IN): 5.78
Travel Length (MM): 146.81
Upper Mount Type: Eyelet
Weight (lb): 5.02
Width (IN): 4

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	530-31*

品牌	号码
OE	8894548*
