ASTRA
530175

第三方数据ASTRA : 530175

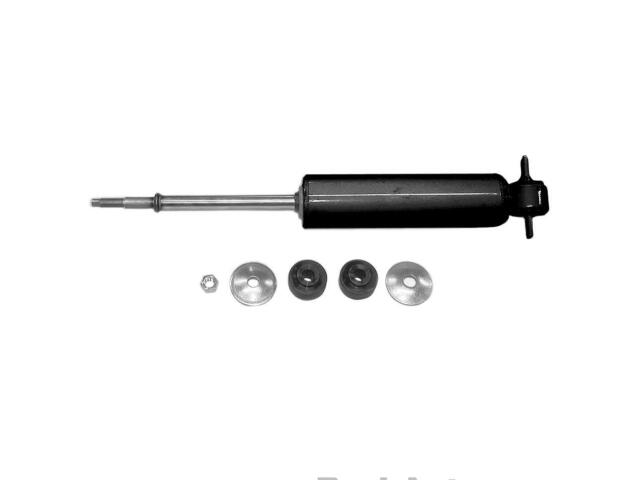

Shock / Strut
ASTRA : 530175

Adjustable: No
Body Diameter (IN): 2
Body Diameter (MM): 50.8
Boot Included: No
Coil Over Springs Included: No
Compressed Length (IN): 9.11
Compressed Length (MM): 231.394
Dust Shield: No
Fully Open Length (IN): 14.14in
Fully Open Length (mm): 359.156mm
Gas Charged: Yes
Lower Mount Type: Two Bolt Bar
Mounting Hardware Included: Yes
Programming Required: No
Shock Absorber Body End Measuring Point: Ring Center
Shock Absorber Rod End Measuring Point: Stud Mounting
Shock Stroke (in): 5.03
Shock Stroke (mm): 127.76
Upper Mount Type: Stud

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	530-17*

品牌	号码
OE	8894534*
