WAGNER
BD181249E

第三方数据WAGNER : BD181249E

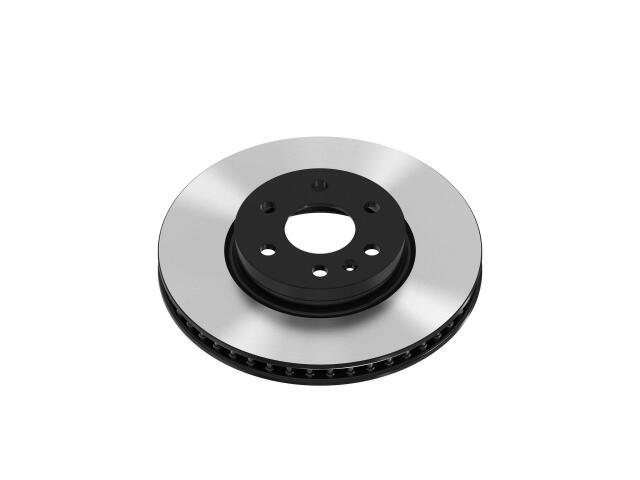

Rotor
WAGNER : BD181249E

Abs Tone Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.793
Center Hole Diameter (MM): 70.960
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Directional
Discard Thickness (IN): 1.102
Discard Thickness (MM): 28.000
Grade Type: Regular
Material: Cast Iron
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.020
Outside Diameter (IN): 12.795
Outside Diameter (MM): 325
Overall Height (IN): 2.427
Overall Height (MM): 61.650
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 6
Surface Type: Smooth

适用车型

CHEVROLET (1)

GMC (1)

参考号

厂商	号码
ACDELCO GOLD/PROFESSIONAL BRAKES	18A82733*
ACDELCO GOLD/PROFESSIONAL BRAKES CANADA	18A82733*
ACDELCO SILVER/ADVANTAGE	18A82733*

厂商	号码
ACDELCO SILVER/ADVANTAGE CANADA	18A82733*
DELCO REMY AMERICA	8470391*

厂商	号码
DELCO REMY AMERICA	8515889*
RAYBESTOS	58273*

OE号码

品牌	号码
OE	8470391*

品牌	号码
OE	8515889*
