WAGNER
BD126456E

第三方数据WAGNER : BD126456E

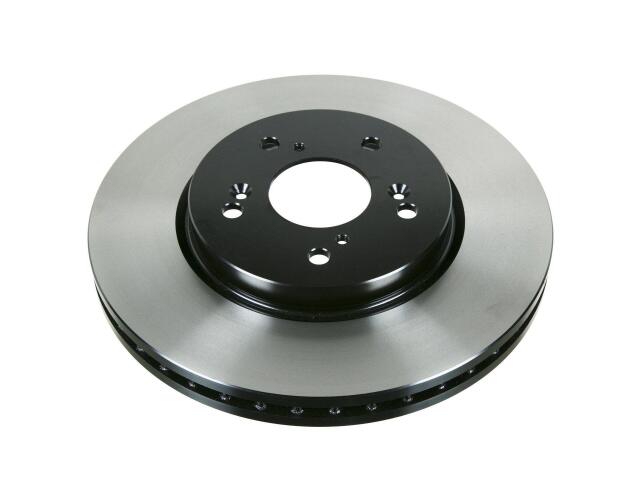

Rotor
WAGNER : BD126456E

Bearings Included: No
Construction: Full Cast
Directional or Non-Directional Brake Surface: Directional
Material: Cast Iron
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.0
Outside Diameter (IN): 11.654
Outside Diameter (MM): 296.0
Overall Height (IN): 1.866
Overall Height (MM): 47.4
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

HONDA (3)

CR-V (1)

2.4L L4 (10)

2007	Front; 5 Stud Wheel; with 296mm Front Rotor 45251STKA00, 45251STKA20, 45251SWAA00, 45251SWAA20, 45251SWAA22, 45251SXSA00, 45251SXSA01, 45251T0GA00

2008	Front; 5 Stud Wheel; with 296mm Front Rotor 45251STKA00, 45251STKA20, 45251SWAA00, 45251SWAA20, 45251SWAA22, 45251SXSA00, 45251SXSA01, 45251T0GA00

2009	Front; 5 Stud Wheel; with 296mm Front Rotor 45251STKA00, 45251STKA20, 45251SWAA00, 45251SWAA20, 45251SWAA22, 45251SXSA00, 45251SXSA01, 45251T0GA00

2010	Front; 5 Stud Wheel; with 296mm Front Rotor 45251STKA00, 45251STKA20, 45251SWAA00, 45251SWAA20, 45251SWAA22, 45251SXSA00, 45251SXSA01, 45251T0GA00

2011	Front; 5 Stud Wheel; with 296mm Front Rotor 45251STKA00, 45251STKA20, 45251SWAA00, 45251SWAA20, 45251SWAA22, 45251SXSA00, 45251SXSA01, 45251T0GA00

2012	Front; AWD; 5 Stud Wheel; with 296mm Front Rotor 45251STKA00, 45251STKA20, 45251SWAA00, 45251SWAA20, 45251SWAA22, 45251SXSA00, 45251SXSA01, 45251T0GA00

2013	Front; AWD; 5 Stud Wheel; with 296mm Front Rotor 45251STKA00, 45251STKA20, 45251SWAA00, 45251SWAA20, 45251SWAA22, 45251SXSA00, 45251SXSA01, 45251T0GA00

2014	Front; AWD; 5 Stud Wheel; with 296mm Front Rotor 45251STKA00, 45251STKA20, 45251SWAA00, 45251SWAA20, 45251SWAA22, 45251SXSA00, 45251SXSA01, 45251T0GA00

2015	Front; AWD; 5 Stud Wheel; with 296mm Front Rotor 45251STKA00, 45251STKA20, 45251SWAA00, 45251SWAA20, 45251SWAA22, 45251SXSA00, 45251SXSA01, 45251T0GA00

2016	Front; AWD; 5 Stud Wheel; with 296mm Front Rotor 45251STKA00, 45251STKA20, 45251SWAA00, 45251SWAA20, 45251SWAA22, 45251SXSA00, 45251SXSA01, 45251T0GA00

CROSSTOUR (2)

ACCORD CROSSTOUR (1)

ACURA (1)

参考号

厂商	号码
ADVANCE/CARQUEST WEAREVER	YH14571*
FIAT	JBR117*
AUTOZONE INC	44583D*
BEST BRAKES USA	PQS3145*
BOSCH BRAKE	2601079*
BRAKEBEST SELECT DRUM/ROTOR	980515RG*
CARQUEST PLATINUM PLUS COATED ROTORS	YH145714*
CARQUEST PLATINUM ROTORS	YH145714*
CARQUEST/ WEAREVER BRAKES	YH14571*
CARQUEST/CARQUEST WEAREVER	YH14571*
CENTRIC FLEET PERFORMANCE	121.4007*
CENTRIC PARTS	121.4007*
CENTRIC PARTS	120.40073CR*
CENTRIC PARTS	120.4007*

厂商	号码
CENTRIC PARTS	320.40073*
DURAGO	BR90038*
DURAGO	BR900388-0*
DURAGO EP COATED	BR900388-0*
FMP PAINTED ROTORS	120.4007*
HONDA	45251T0GA0*
HONDA	45251STKA0*
HONDA	45251STKA2*
HONDA	45251SWAA0*
HONDA	45251SWAA2*
HONDA	45251SWAA2*
HONDA	45251SXSA0*
MAGMA BRAKES	PSR26510*

厂商	号码
MAGMA BRAKES	PMR26510*
NAPA CANADA/VALUELINE BRAKE ROTORS- VLC	24888051*
NAPA/BRAKE ROTORS & DRUMS-NB	4888051*
NAPA/ULTRA PREMIUM BRAKE PARTS-UP	880515C*
POWER STOP	JBR117*
POWER STOP	JBR1173EV*
RAYBESTOS	980515*
RAYBESTOS	98051*
RAYBESTOS	980515FZ*
RAYBESTOS	980515R*
RAYBESTOS UNBRANDED	980515FZ*
RAYBESTOS UNBRANDED	98051*
RAYBESTOS UNBRANDED	980515*

OE号码

品牌	号码
HONDA	45251STKA0*
TOYOTA	45251STKA0*
HONDA	45251STKA2*
HONDA	45251SWAA0*

品牌	号码
HONDA	45251SWAA2*
ACURA (SEE HONDA)	45251SWAA2*
HONDA	45251SWAA2*
HONDA	45251SXSA0*

品牌	号码
DATSUN/NISSAN	45251SXSA0*
NISSAN	45251SXSA0*
HONDA	45251T0GA0*
