WAGNER
BD126303E

第三方数据WAGNER : BD126303E

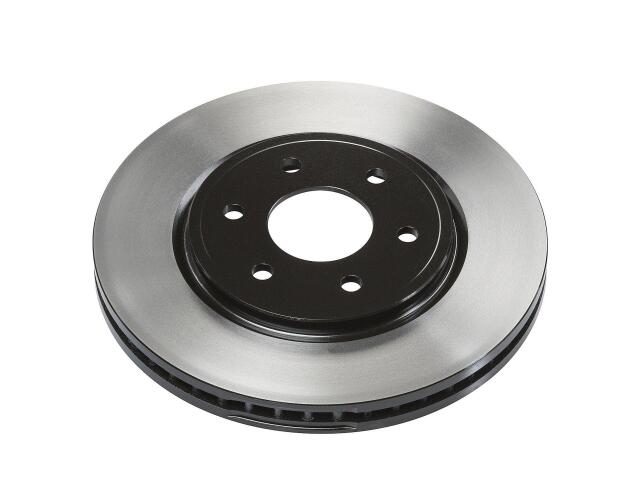

Rotor
WAGNER : BD126303E

Bearings Included: No
Construction: Full Cast
Directional or Non-Directional Brake Surface: Directional
Material: Cast Iron
Nominal Thickness (IN): 1.102
Nominal Thickness (MM): 28.0
Outside Diameter (IN): 11.640
Outside Diameter (MM): 295.8
Overall Height (IN): 1.500
Overall Height (MM): 38.1
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 6
Surface Type: Smooth

适用车型

NISSAN (3)

FRONTIER (4)

2.5L L4 (5)

2.5L L4 DIESEL Turbocharged (4)

3.8L V6 (5)

4.0L V6 (16)

2005	Front; 6 Stud Wheel; with 296mm Front Rotor 402069BE0A, 402069BE0B, 402069BE0C, 40206EA00A, 5531182Z00

2006	Front; 6 Stud Wheel; with 296mm Front Rotor 402069BE0A, 402069BE0B, 402069BE0C, 40206EA00A, 5531182Z00

2007	Front; 6 Stud Wheel; with 296mm Front Rotor 402069BE0A, 402069BE0B, 402069BE0C, 40206EA00A, 5531182Z00

2008	Front; 6 Stud Wheel; with 296mm Front Rotor 402069BE0A, 402069BE0B, 402069BE0C, 40206EA00A, 5531182Z00

2009	Front; 6 Stud Wheel; with 296mm Front Rotor 402069BE0A, 402069BE0B, 402069BE0C, 40206EA00A, 5531182Z00

2010	Front; 6 Stud Wheel; with 296mm Front Rotor 402069BE0A, 402069BE0B, 402069BE0C, 40206EA00A, 5531182Z00

2011	Front; 6 Stud Wheel; with 296mm Front Rotor 402069BE0A, 402069BE0B, 402069BE0C, 40206EA00A, 5531182Z00

2012	Front; 6 Stud Wheel; with 296mm Front Rotor 402069BE0A, 402069BE0B, 402069BE0C, 40206EA00A, 5531182Z00

2013	Front; 6 Stud Wheel; with 296mm Front Rotor 402069BE0A, 402069BE0B, 402069BE0C, 40206EA00A, 5531182Z00

2014	Front; 6 Stud Wheel; with 296mm Front Rotor 402069BE0A, 402069BE0B, 402069BE0C, 40206EA00A, 5531182Z00

2015	Front; 6 Stud Wheel; with 296mm Front Rotor 402069BE0A, 402069BE0B, 402069BE0C, 40206EA00A, 5531182Z00

2016	Front; 6 Stud Wheel; with 296mm Front Rotor 402069BE0A, 402069BE0B, 402069BE0C, 40206EA00A, 5531182Z00

2017	Front; 6 Stud Wheel; with 296mm Front Rotor 402069BE0A, 402069BE0B, 402069BE0C, 40206EA00A, 5531182Z00

2018	Front; 6 Stud Wheel; with 296mm Front Rotor 402069BE0A, 402069BE0B, 402069BE0C, 40206EA00A, 5531182Z00

2019	Front; 6 Stud Wheel; with 296mm Front Rotor 402069BE0A, 402069BE0B, 402069BE0C, 40206EA00A, 5531182Z00

2020	Front; 6 Stud Wheel; with 296mm Front Rotor 402069BE0A, 402069BE0B, 402069BE0C, 40206EA00A, 5531182Z00

XTERRA (2)

PATHFINDER (1)

SUZUKI (1)

参考号

厂商	号码
ADVANCE/CARQUEST WEAREVER	YH14567*
AIMCO	3141*
FIAT	JBR112*
AUTOZONE/DURALAST-NEOTEK	4431*
BEST BRAKES USA	PQB3141*
BOSCH BRAKE	4001106*
BRAKEBEST SELECT DRUM/ROTOR	980370RG*
CARQUEST PLATINUM PLUS COATED ROTORS	YH145675*
CARQUEST PLATINUM ROTORS	YH145675*
CARQUEST/ WEAREVER BRAKES	YH14567*
CARQUEST/CARQUEST WEAREVER	YH14567*
CENTRIC FLEET PERFORMANCE	121.4208*
CENTRIC PARTS	121.4208*
CENTRIC PARTS	320.42085*
CENTRIC PARTS	120.42085CR*
CENTRIC PARTS	120.4208*
DURAGO	BR90028*
DURAGO	BR900282-0*

厂商	号码
DURAGO EP COATED	BR900282-0*
FMP PAINTED ROTORS	120.4208*
IMPORT DIRECT BRAKE ROTORS	98-0370*
INFINITI	40206EA00*
MAGMA BRAKES	PSR42510*
MAGMA BRAKES	PMR42510*
NAPA	88037*
NAPA CANADA/ABS SENSORS - BSN	88037*
NAPA CANADA/VALUELINE BRAKE ROTORS- VLC	24888037*
NAPA/BRAKE ROTORS & DRUMS-NB	4888037*
NAPA/DORMAN NAPA XPRESS - XDK	4888037*
NAPA/DORMAN NAPA XPRESS - XDK	88037*
NAPA/RIGHT FIT - RFP	88037*
NAPA/RIGHT FIT - RFP	4888037*
NAPA/ULTRA PREMIUM BRAKE PARTS-UP	880370C*
NAPA/ULTRA PREMIUM BRAKE PARTS-UP	RA88037*
PERFECT STOP HIGH CARBON	PS126303H*

厂商	号码
POWER STOP	JBR112*
POWER STOP	JBR1124EV*
PRO-SERIES OE PLUS (NEW)	C2630*
RAYBESTOS	980370FZ*
RAYBESTOS	980370PE*
RAYBESTOS	980370*
RAYBESTOS	980370R*
RAYBESTOS	98037*
RAYBESTOS UNBRANDED	98037*
RAYBESTOS UNBRANDED	980370*
RAYBESTOS UNBRANDED	980370PE*
RAYBESTOS UNBRANDED	980370FZ*
ULTRA HC	UR00176*
ULTRAHC1000 BRAKE PADS	662061*
WINHERE BRAKE PARTS INC.	662061*
WINHERE BRAKE PARTS INC.	UR00176*
WINSTOP BRAKE ROTORS AND DRUMS	WS24599*

OE号码

品牌	号码
DATSUN/NISSAN	402069BE0*
NISSAN	402069BE0*
DATSUN/NISSAN	402069BE0*

品牌	号码
NISSAN	402069BE0*
NISSAN	402069BE0*
DATSUN/NISSAN	40206EA00*

品牌	号码
INFINITI	40206EA00*
NISSAN	40206EA00*
SUZUKI	5531182Z0*
