第三方数据RAYBESTOS : 982264FZN

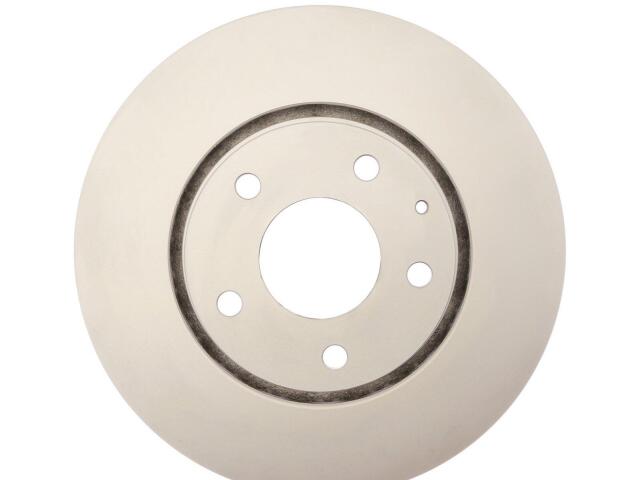

Rotor
RAYBESTOS : 982264FZN

Discard Thickness (IN): 0.984
Discard Thickness (MM): 25.000
Inside Diameter (IN): 7.094
Inside Diameter (MM): 180.200
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.098
Nominal Thickness (MM): 27.900
Outside Diameter (IN): 11.677
Outside Diameter (MM): 296.600
Overall Height (IN): 2.028
Overall Height (MM): 51.500
Rotor Type: Conventional
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Wheel Bolt Circle Diameter (IN): 4.500
Wheel Bolt Circle Diameter (MM): 114.300
Wheel Bolt Holes: 5

适用车型

MAZDA (2)

参考号

厂商	号码
ADVANCE	YH566200*
ADVANCE/CARQUEST PLATINUM ROTORS	YH566200*
ADVANCE/CARQUEST WORLDPAC	YH566200*
AMERIBRAKES	57488*
AUTOPARTSOURCE	57488*
AUTOZONE/DURALAST CONNECTORS	77112D*
AUTOZONE/DURALAST CONNECTORS	77112D*
AUTOZONE/DURALAST GOLD-ROTORS	77112D*
AUTOZONE/DURALAST-NEOTEK	77112D*
BRAKEBEST	922004RG*
BRAKEBEST COATED CALIPERS	922004RG*
CENTRIC PARTS	120.4509*

厂商	号码
CENTRIC PARTS	121.4509*
CENTRIC PARTS	126.45094S*
CENTRIC PARTS	126.45094S*
CENTRIC PARTS	127.45094*
CENTRIC PARTS	127.45094*
CENTRIC PARTS	128.45094*
CENTRIC PARTS	128.45094*
CENTRIC PARTS	320.4509*
DFC	600-8007*
DFC	604-8007*
DURAGO	BR90148*

厂商	号码
DURAGO - BRAKE PAD AND ROTOR KIT C/MS	BR90148*
EVOLUTION BUNDLES BY POWER STOP	JBR1745EV*
FREMAX BRAKE ROTORS & DRUMS	BD738*
MAX ADVANCED BRAKES	OCG115*
O'REILLY BRAKEBEST	922004RG*
O'REILLY/BRAKEBST SELECT	922004RG*
POWER STOP	JBR1745EV*
QBP INTERNATIONAL	EC198226*
QUALIS	4483*
ULTRA BRAKE SYSTEMS	MA-805*
WAGNER BRAKE	BD180685*

OE号码

品牌	号码
MAZDA	GBFT3325*

品牌	号码
MAZDA	GBFT33251*

品牌	号码
MAZDA	KD453325*
