RAYBESTOS
980783R

第三方数据RAYBESTOS : 980783R

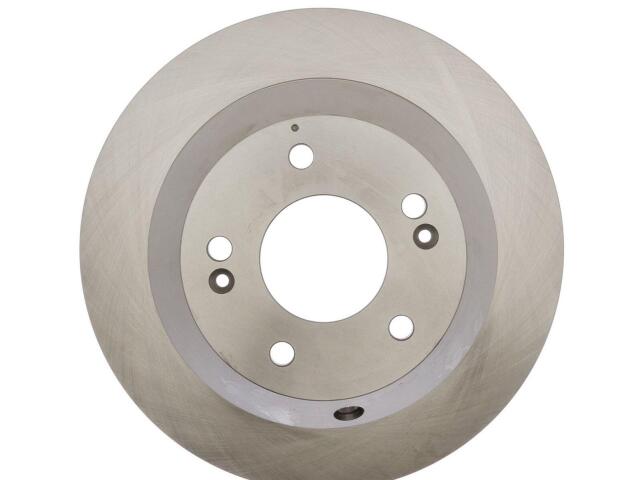

Rotor
RAYBESTOS : 980783R

Discard Thickness (IN): 0.370
Discard Thickness (MM): 9.400
Inside Diameter (IN): 8.142
Inside Diameter (MM): 206.800
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.434
Nominal Thickness (MM): 11.000
Outside Diameter (IN): 11.892
Outside Diameter (MM): 302.050
Overall Height (IN): 2.816
Overall Height (MM): 71.550
Rotor Type: Drum-in-Hat
Solid Or Vented Type Rotor: Solid
Surface Type: Smooth
Wheel Bolt Circle Diameter (IN): 4.500
Wheel Bolt Circle Diameter (MM): 114.300
Wheel Bolt Holes: 5

适用车型

HYUNDAI (2)

SANTA FE (4)

2.0L L4 Turbocharged (6)

2.4L L4 (9)

3.3L V6 (6)

3.5L V6 (3)

SANTA FE XL (1)

KIA (2)

SORENTO (3)

SEDONA (1)

参考号

厂商	号码
ADVANCE	29009*
ADVANCE	YH29009*
ADVANCE	YH290094*
ADVANCE	YH290094*
ADVANCE	YH536732*
ADVANCE/CARQUEST PLATINUM ROTORS	YH536732*
ADVANCE/CARQUEST PLATINUM ROTORS	YH290094*
ADVANCE/CARQUEST PLATINUM ROTORS	YH290094*
ADVANCE/CARQUEST PLATINUM ROTORS	YH29009*
ADVANCE/CARQUEST PLATINUM ROTORS	29009*
ADVANCE/CARQUEST WORLDPAC	29009*
ADVANCE/CARQUEST WORLDPAC	YH29009*
ADVANCE/CARQUEST WORLDPAC	YH290094*
ADVANCE/CARQUEST WORLDPAC	YH290094*
ADVANCE/CARQUEST WORLDPAC	YH536732*
AIMCO	1013155*
API	1407-29009*
ATE/PREMIUMONE	41117*
AUTO EXTRA DRUMS-ROTORS/NEW SEQ	AX90089*
AUTOPART INTERNATIONAL	1407-29009*
AUTOPART INTERNATIONAL	1407-53673*
AUTOPARTSOURCE	58330*
AUTOXTRA	AX90089*
AUTOZONE/BECK ARNLEY	083-346*
AUTOZONE/BECK ARNLEY	083-369*
AUTOZONE/BRAKEWARE-BENDIX	PRT603*
AUTOZONE/DURALAST GOLD-ROTORS	70109D*
AUTOZONE/DURALAST-NEOTEK	7010*
AUTOZONE/RAYBESTOS	980783*
BENDIX	PRT603*
BOSCH	2801149*
BOSCH BRAKE	2801149*
BRAKEBEST	2801149*
BRAKEBEST	980783*
BRAKEBEST	980783FZ*
BRAKEBEST	980783RG*
BRAKEBEST	98078*
BRAKEBEST COATED CALIPERS	98078*
BRAKEBEST COATED CALIPERS	980783RG*
BRAKEBEST COATED CALIPERS	980783FZ*
BRAKEBEST COATED CALIPERS	980783*
BRAKEBEST COATED CALIPERS	2801149*

厂商	号码
IVECO	3155*
CARQUEST PLATINUM ROTORS	YH536732*
CARQUEST PLATINUM ROTORS	YH290094*
CARQUEST/AIMCO	3155*
CARQUEST/RAYBESTOS	3155*
CENTRIC PARTS	227.51039*
CENTRIC PARTS	227.51039*
CENTRIC PARTS	320.50031*
CENTRIC PARTS	320.5103*
CENTRIC PARTS	120.5103*
CENTRIC PARTS	121.5003*
CENTRIC PARTS	121.5103*
CENTRIC PARTS	125.5003*
CENTRIC PARTS	126.50031S*
CENTRIC PARTS	126.50031S*
CENTRIC PARTS	126.51039CS*
CENTRIC PARTS	126.51039CS*
CENTRIC PARTS	126.51039S*
CENTRIC PARTS	126.51039S*
CENTRIC PARTS	127.50031*
CENTRIC PARTS	127.50031*
CENTRIC PARTS	127.51039*
CENTRIC PARTS	127.51039*
CENTRIC PARTS	128.50031*
CENTRIC PARTS	128.50031*
CENTRIC PARTS	128.51039*
CENTRIC PARTS	128.51039*
DFC	600-2102*
DURAGO	90089*
DURAGO	BR90089*
DURAGO	BR9008940*
DURAGO	BR90098*
DURAGO - BRAKE PAD AND ROTOR KIT C/MS	BR9008940*
DURAGO - BRAKE PAD AND ROTOR KIT C/MS	BR90089*
DURAGO - BRAKE PAD AND ROTOR KIT C/MS	90089*
EUROROTOR	HY-301*
EVOLUTION BUNDLES BY POWER STOP	JBR1532EV*
EVOLUTION BUNDLES BY POWER STOP	JBR1705EV*
FEDERATED DRUMS & ROTORS	F980783*
FEDERATED DRUMS & ROTORS	SB98078*
FMP PAINTED ROTORS	120.5103*
FREMAX BRAKE ROTORS & DRUMS	BD518*

厂商	号码
MAGMA BRAKES	PMR28508*
NAPA	SDK662*
NAPA/BRAKE ROTORS & DRUMS-NB	4888078*
NEWTEK AUTOMOTIVE	3155*
O'REILLY BRAKEBEST	2801149*
O'REILLY BRAKEBEST	98078*
O'REILLY BRAKEBEST	980783*
O'REILLY BRAKEBEST	980783FZ*
O'REILLY BRAKEBEST	980783RG*
O'REILLY/BRAKEBST SELECT	980783RG*
O'REILLY/BRAKEBST SELECT	980783FZ*
O'REILLY/BRAKEBST SELECT	980783*
O'REILLY/BRAKEBST SELECT	98078*
O'REILLY/BRAKEBST SELECT	2801149*
PARTS MASTER/BRAKE DRUMS & ROTORS - UAP	90089*
PARTS MASTER/BRAKE ROTOR & DRUM	90089*
PARTS PLUS DRUMS AND ROTORS	PP98078*
PARTS PLUS DRUMS AND ROTORS	P98078*
POWER STOP	JBR1705EV*
POWER STOP	JBR1532EV*
PROMAX	20-3155*
PROMAX	14-3155*
QUALIS	4471*
RAYBESTOS UNBRANDED	3155*
RS PARTS	RS98078*
RS PARTS	RS980783*
ULTRA BRAKE SYSTEMS	HY-301*
ULTRA BRAKE SYSTEMS	KI-96*
ULTRA HC	66191*
UQUALITY AUTOMOTIVE PRODUCTS	294082*
UQUALITY AUTOMOTIVE PRODUCTS	290089*
UQUALITY AUTOMOTIVE PRODUCTS	R5103*
WAGNER BRAKE	SB98078*
WAGNER BRAKE	BD180392*
WAGNER BRAKE	BD18039*
WAGNER BRAKE CALIPERS (REMAN, NEW #'S)	BD18039*
WAGNER BRAKE CALIPERS (REMAN, NEW #'S)	SB98078*
WAGNER CALIPERS	SB98078*
WAGNER CALIPERS	BD18039*
WINHERE	66191*
WINHERE BRAKE PARTS INC.	66191*
WORLDPARTS BRAKE PADS & ROTORS-CANADA	WS1-33155*

OE号码

品牌	号码
OE	F980783*
OE	SB98078*
OE	PP98078*
OE	P98078*

品牌	号码
KIA	58411A900*
HYUNDAI	58411-2P00*
HYUNDAI	58411-2W01*

品牌	号码
HYUNDAI	584412W01*
KIA	58411C500*
KIA	58411C600*
