RAYBESTOS
780733FZN

第三方数据RAYBESTOS : 780733FZN

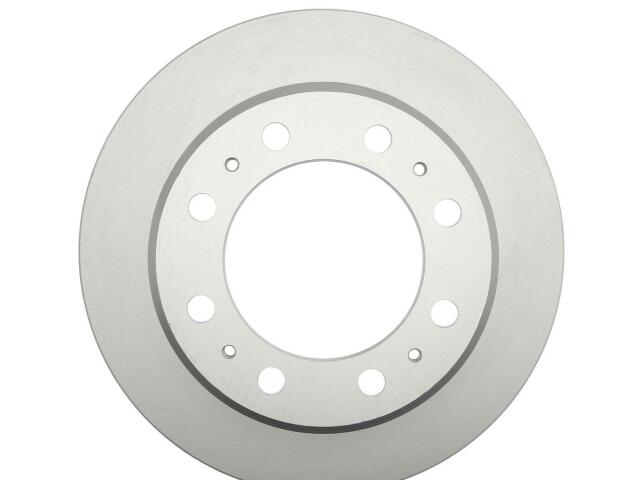

Rotor
RAYBESTOS : 780733FZN

Discard Thickness (IN): 1.276
Discard Thickness (MM): 32.400
Inside Diameter (IN): 9.774
Inside Diameter (MM): 248.250
Mounting Bolt Hole Quantity: 8
Nominal Thickness (IN): 1.343
Nominal Thickness (MM): 34.100
Outside Diameter (IN): 14.098
Outside Diameter (MM): 358.100
Overall Height (IN): 4.920
Overall Height (MM): 124.950
Rotor Type: Drum-in-Hat
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Wheel Bolt Circle Diameter (IN): 6.500
Wheel Bolt Circle Diameter (MM): 165.100
Wheel Bolt Holes: 8

适用车型

DODGE (3)

RAM 2500 PICKUP (3)

RAM 3500 PICKUP (2)

RAM 4000 (3)

RAM (3)

2500 (3)

5.7L V8 (9)

6.4L V8 (11)

6.7L L6 DIESEL Turbocharged (14)

2011	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2012	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2013	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2014	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2015	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2016	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2017	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2018	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2019	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2020	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2021	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2022	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2023	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2024	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

3500 (3)

5.7L V8 (8)

6.4L V8 (11)

2014	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2015	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2016	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2017	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2018	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2019	Element 3 Fits Rear; with Single Rear Wheels (SRW)or Rear; Dual Rear Wheels; Rotor Diameter 358mm 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2020	Element 3 Fits Rear; with Single Rear Wheels (SRW)or Rear; Dual Rear Wheels; Rotor Diameter 358mm 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2021

Element 3
Fits Rear; 11.50 Rear Axle (DRQ); 11.50" Dual Wheels Rear Axle (DRX); Rotor Diameter 358mm; with Dual Rear Wheelsor Rear; 11.50 Rear Axle (DRQ); 11.50" Dual Wheels Rear Axle (DRX); with Single Rear Wheels (SRW)
52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2022	Element 3 Fits Rear; Rotor Diameter 358mm; with Dual Rear Wheelsor Rear; 11.50 Rear Axle (DRQ); 11.50" Dual Wheels Rear Axle (DRX); with Single Rear Wheels (SRW) 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2023	Element 3 Fits Rear; with Single Rear Wheels (SRW)or Rear; Rotor Diameter 358mm; with Dual Rear Wheels 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2024	Element 3 Rear; 12.0" Rear Axle [DR7], 11.50 Rear Axle [DRQ]; 226mm Rear Axle [DRC]; Rotor Diameter 358mm 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

6.7L L6 DIESEL Turbocharged (14)

2011	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2012	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2013	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2014	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2015	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2016	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2017	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2018	Element 3 Rear 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2019	Element 3 Fits Rear; with Single Rear Wheels (SRW)or Rear; Dual Rear Wheels; Rotor Diameter 358mm 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2020	Element 3 Fits Rear; with Single Rear Wheels (SRW)or Rear; Dual Rear Wheels; Rotor Diameter 358mm 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2021

2022	Element 3 Fits Rear; Rotor Diameter 358mm; with Dual Rear Wheelsor Rear; 11.50 Rear Axle (DRQ); 11.50" Dual Wheels Rear Axle (DRX); with Single Rear Wheels (SRW) 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2023	Element 3 Fits Rear; with Single Rear Wheels (SRW)or Rear; Rotor Diameter 358mm; with Dual Rear Wheels 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

2024	Element 3 Rear; 12.0" Rear Axle [DR7], 11.50 Rear Axle [DRQ]; 226mm Rear Axle [DRC]; Rotor Diameter 358mm 52122184AA, 68188899AA, 68188899AA001, 68188899AB, 68414883AB, 68414884AA, 68414884AB

4000 (2)

参考号

厂商	号码
ADVANCE	27491*
ADVANCE	YH27491*
ADVANCE	YH274916*
ADVANCE	YH274916*
ADVANCE	YH527287*
ADVANCE	G09603S*
ADVANCE/ CQ PROF HIGH CARBON ROTORS	YH527287H*
ADVANCE/CARQUEST FRONTLINE BRAKES	G09603S*
ADVANCE/CARQUEST PLATINUM ROTORS	G09603S*
ADVANCE/CARQUEST PLATINUM ROTORS	YH527287*
ADVANCE/CARQUEST PLATINUM ROTORS	YH274916*
ADVANCE/CARQUEST PLATINUM ROTORS	YH274916*
ADVANCE/CARQUEST PLATINUM ROTORS	YH27491*
ADVANCE/CARQUEST PLATINUM ROTORS	27491*
ADVANCE/CARQUEST PREMIUM AC	YH274916*
ADVANCE/CARQUEST WEAREVER BRAKES	YH274916*
ADVANCE/CARQUEST WORLDPAC	YH274916*
ADVANCE/CARQUEST WORLDPAC	YH274916*
ADVANCE/CARQUEST WORLDPAC	YH527287*
ADVANCE/CARQUEST WORLDPAC	YH27491*
ADVANCE/CARQUEST WORLDPAC	G09603S*
ADVANCE/CARQUEST WORLDPAC	27491*
AMERIBRAKES	59135*
AUTO EXTRA DRUMS-ROTORS/NEW SEQ	AX90069*
AUTOPART INTERNATIONAL	1427-59630*
AUTOPART INTERNATIONAL	1427-71133*
AUTOXTRA	AX90069*
AUTOXTRA	AX90145*
AUTOZONE/DURALAST CONNECTORS	72184D*
AUTOZONE/DURALAST CONNECTORS	7218*
AUTOZONE/DURALAST GOLD-ROTORS	72184D*
AUTOZONE/DURALAST-NEOTEK	7218*
BENDIX	SDR591*
BOSCH	1601149*
BOSCH BRAKE	1601149*
BRAKEBEST	1601149*
BRAKEBEST	78073*

厂商	号码
BRAKEBEST	780733FZ*
BRAKEBEST	780733*
BRAKEBEST	780733RG*
BRAKEBEST COATED CALIPERS	780733RG*
BRAKEBEST COATED CALIPERS	780733*
BRAKEBEST COATED CALIPERS	780733FZ*
BRAKEBEST COATED CALIPERS	78073*
BRAKEBEST COATED CALIPERS	1601149*
CARQUEST PREMIUM COATED ROTORS	YH274916*
CENTRIC PARTS	120.6707*
CENTRIC PARTS	120.6708*
CENTRIC PARTS	120.67080CR*
CENTRIC PARTS	121.6708*
CENTRIC PARTS	1216707*
CENTRIC PARTS	125.6708*
CENTRIC PARTS	126.67080CS*
CENTRIC PARTS	126.67080CS*
CENTRIC PARTS	126.67080S*
CENTRIC PARTS	126.67080S*
CENTRIC PARTS	127.67080C*
CENTRIC PARTS	127.67080C*
CENTRIC PARTS	127.67080*
CENTRIC PARTS	127.67080*
CENTRIC PARTS	128.67080C*
CENTRIC PARTS	128.67080C*
CENTRIC PARTS	128.67080*
CENTRIC PARTS	128.67080*
CENTRIC PARTS	320.6708*
CENTRIC PARTS	320.67080*
DFC	600-4011*
DURAGO	BR90145*
DURAGO	90069*
DURAGO	BR5305*
DURAGO	BR90069*
DURAGO - BRAKE PAD AND ROTOR KIT C/MS	BR90069*
DURAGO - BRAKE PAD AND ROTOR KIT C/MS	90069*
DURAGO - BRAKE PAD AND ROTOR KIT C/MS	BR90145*

厂商	号码
EUROROTOR	5316*
EVOLUTION BUNDLES BY POWER STOP	AR83067EV*
EVOLUTION BUNDLES BY POWER STOP	AR8374EV*
MAX ADVANCED BRAKES	OCG056*
MONROE PREMIUM BRAKES US	BD18031*
NEWTEK AUTOMOTIVE	R145*
NEWTEK AUTOMOTIVE	5305*
O'REILLY BRAKEBEST	1601149*
O'REILLY BRAKEBEST	78073*
O'REILLY BRAKEBEST	780733FZ*
O'REILLY BRAKEBEST	780733*
O'REILLY BRAKEBEST	780733RG*
O'REILLY/BRAKEBST SELECT	780733RG*
O'REILLY/BRAKEBST SELECT	780733*
O'REILLY/BRAKEBST SELECT	780733FZ*
O'REILLY/BRAKEBST SELECT	78073*
O'REILLY/BRAKEBST SELECT	1601149*
PARTS MASTER/BRAKE ROTOR & DRUM	90145*
POWER STOP	AR83067EV*
POWER STOP	AR8374EV*
PROMAX	14-5305*
QUALIS	4316*
QUALIS	4319*
ULTRA BRAKE SYSTEMS	5316*
ULTRA HC	662117*
ULTRA HC	UR00346*
UQUALITY AUTOMOTIVE PRODUCTS	5305*
UQUALITY AUTOMOTIVE PRODUCTS	205305*
WABCO	PS18031*
WAGNER BRAKE	BD18031*
WAGNER BRAKE	BD180310*
WAGNER BRAKE	DSX180310*
WAGNER BRAKE CALIPERS (REMAN, NEW #'S)	BD18031*
WAGNER CALIPERS	BD18031*
WINHERE	662117*
WINHERE BRAKE PARTS INC.	662117*
WINHERE BRAKE PARTS INC.	UR00346*

OE号码

品牌	号码
CHRYSLER	52122184A*
MOPAR BRAND	52122184A*
CHRYSLER	68188899A*
MOPAR BRAND	68188899A*
CHRYSLER	68188899AA00*

品牌	号码
MOPAR BRAND	68188899AA00*
CHRYSLER	68188899A*
MOPAR BRAND	68188899A*
CHRYSLER	68414883A*
MOPAR BRAND	68414883A*

品牌	号码
CHRYSLER	68414884A*
MOPAR BRAND	68414884A*
CHRYSLER	68414884A*
MOPAR BRAND	68414884A*
