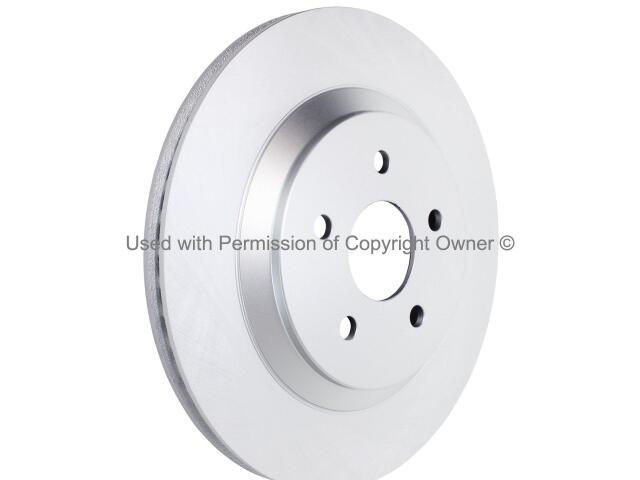

Rotor
QUALITY-BUILT : BR54117G

Abs Tone Ring Included: No
Center Hole Diameter (MM): 64.4
Discard Thickness (IN): 0.7
Discard Thickness (MM): 18.4
Finish: Coated
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.579
Mounting Bolt Hole Diameter (MM): 14.7
Nominal Thickness (IN): 0.8
Nominal Thickness (MM): 20.0
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

FORD (1)

MERCURY (1)

OE号码

品牌	号码
OE	MPABR54117*
