QUALITY-BUILT
BR54094G

第三方数据QUALITY-BUILT : BR54094G

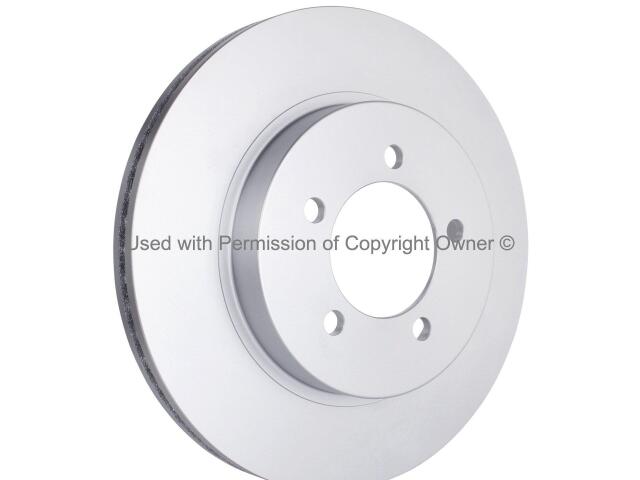

Rotor
QUALITY-BUILT : BR54094G

Abs Tone Ring Included: No
Center Hole Diameter (MM): 82.0
Discard Thickness (IN): 1.0
Discard Thickness (MM): 24.5
Finish: Coated
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.547
Mounting Bolt Hole Diameter (MM): 13.9
Nominal Thickness (IN): 1.0
Nominal Thickness (MM): 26.0
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

FORD (1)

MERCURY (1)

OE号码

品牌	号码
OE	MPABR54094*
