QUALITY-BUILT
BR43083G

第三方数据QUALITY-BUILT : BR43083G

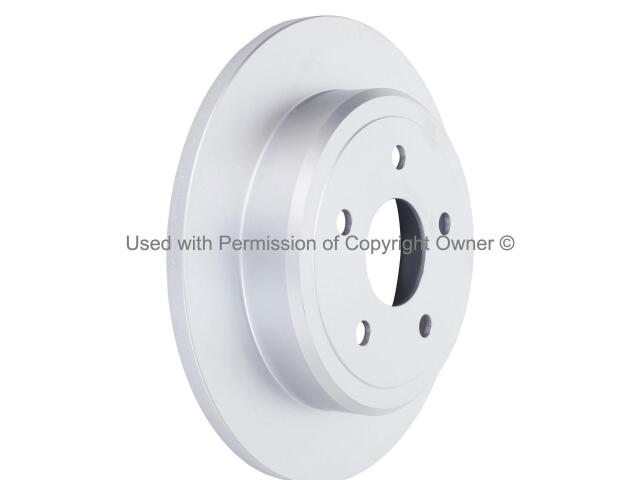

Rotor
QUALITY-BUILT : BR43083G

Abs Tone Ring Included: No
Center Hole Diameter (MM): 71.9
Discard Thickness (IN): 0.5
Discard Thickness (MM): 12.5
Finish: Coated
Mounting Bolt Hole Circle Diameter (IN): 5.000
Mounting Bolt Hole Circle Diameter (MM): 127.0
Mounting Bolt Hole Diameter (IN): 0.638
Mounting Bolt Hole Diameter (MM): 16.2
Nominal Thickness (IN): 0.6
Nominal Thickness (MM): 14.1
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

JEEP (2)

GRAND CHEROKEE (4)

3.0L V6 DIESEL Turbocharged (2)

3.7L V6 (6)

4.7L V8 (5)

5.7L V8 (6)

COMMANDER (3)

OE号码

品牌	号码
OE	MPABR43083*
