QUALITY-BUILT
BR41212G

第三方数据QUALITY-BUILT : BR41212G

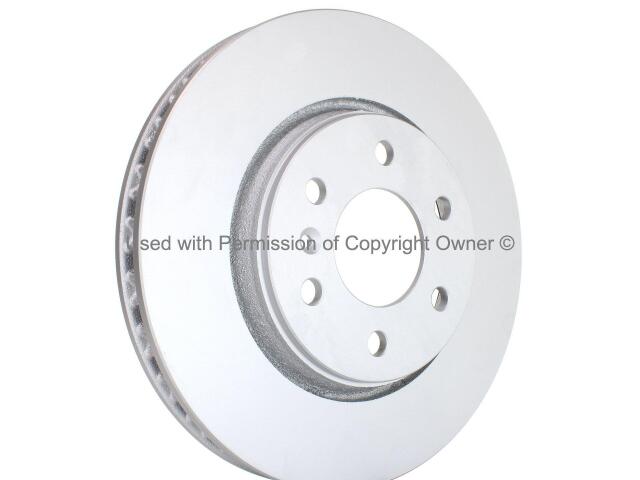

Rotor
QUALITY-BUILT : BR41212G

Abs Tone Ring Included: No
Center Hole Diameter (MM): 70.8
Discard Thickness (IN): 1.2
Discard Thickness (MM): 30.7
Finish: Coated
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.563
Mounting Bolt Hole Diameter (MM): 14.3
Nominal Thickness (IN): 1.3
Nominal Thickness (MM): 32.2
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 6
Surface Type: Smooth

适用车型

BUICK (1)

CHEVROLET (1)

PONTIAC (1)

SATURN (1)

OE号码

品牌	号码
OE	MPABR41212*
