QUALITY-BUILT
BR31350G

第三方数据QUALITY-BUILT : BR31350G

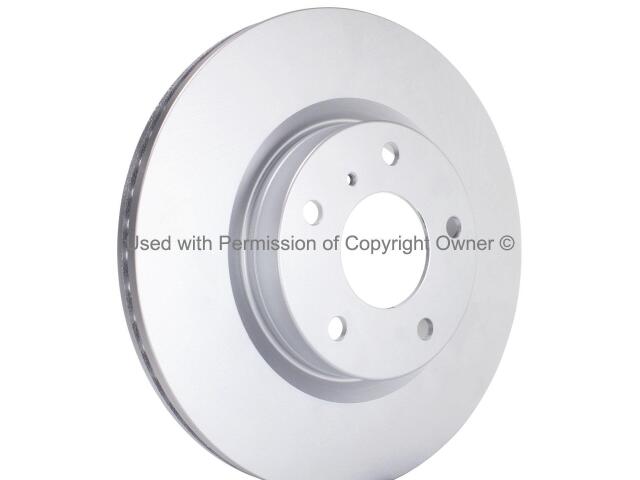

Rotor
QUALITY-BUILT : BR31350G

Abs Tone Ring Included: No
Center Hole Diameter (MM): 68.0
Discard Thickness (IN): 0.9
Discard Thickness (MM): 22.0
Finish: Coated
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.508
Mounting Bolt Hole Diameter (MM): 12.9
Nominal Thickness (IN): 0.9
Nominal Thickness (MM): 24.0
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

NISSAN (1)

INFINITI (1)

OE号码

品牌	号码
OE	MPABR31350*
