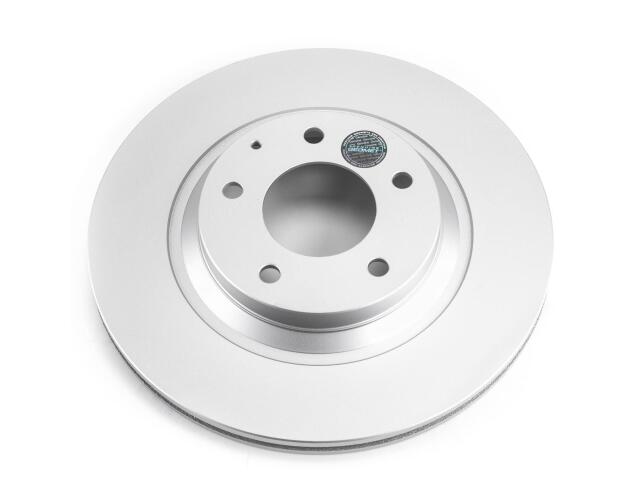

Rotor
POWER STOP : JBR997EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.63
Discard Thickness (MM): 16.00
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 0.72
Nominal Thickness (MM): 18.20
Outside Diameter (IN): 11.85
Outside Diameter (MM): 301.00
Overall Height (IN): 1.74
Overall Height (MM): 44.20
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

MAZDA (1)
