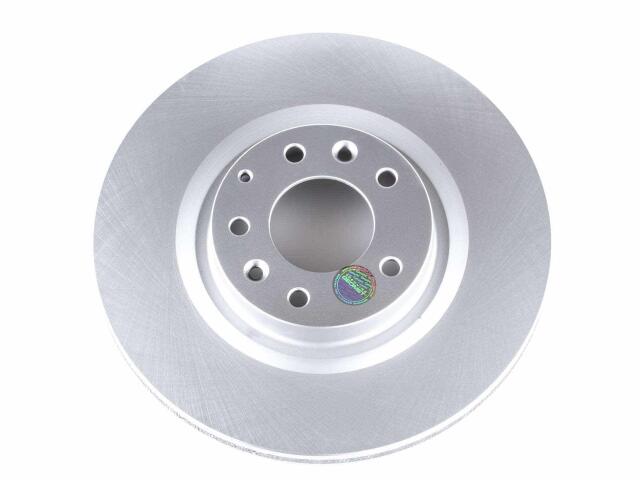

Rotor
POWER STOP : JBR968EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.87
Discard Thickness (MM): 22.00
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 0.94
Nominal Thickness (MM): 24.00
Outside Diameter (IN): 12.72
Outside Diameter (MM): 323.00
Overall Height (IN): 1.77
Overall Height (MM): 44.90
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

MAZDA (1)
