POWER STOP
JBR951EVC

第三方数据POWER STOP : JBR951EVC

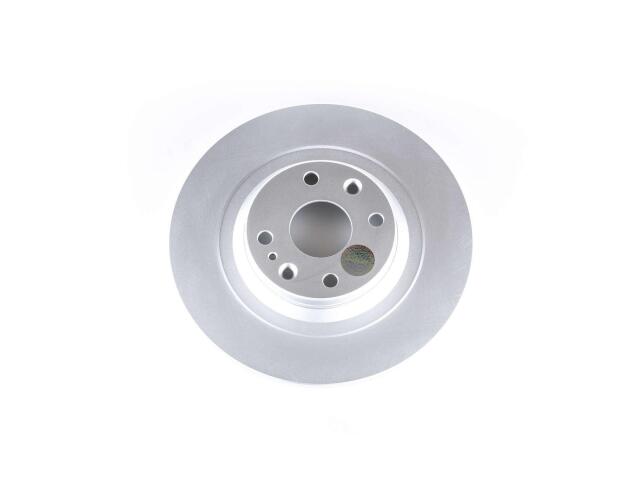

Rotor
POWER STOP : JBR951EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.31
Discard Thickness (MM): 8.00
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100.00
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10.00
Outside Diameter (IN): 10.85
Outside Diameter (MM): 275.50
Overall Height (IN): 1.35
Overall Height (MM): 34.40
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 4
Surface Type: Smooth

适用车型

MAZDA (1)
