POWER STOP
JBR739EVC

第三方数据POWER STOP : JBR739EVC

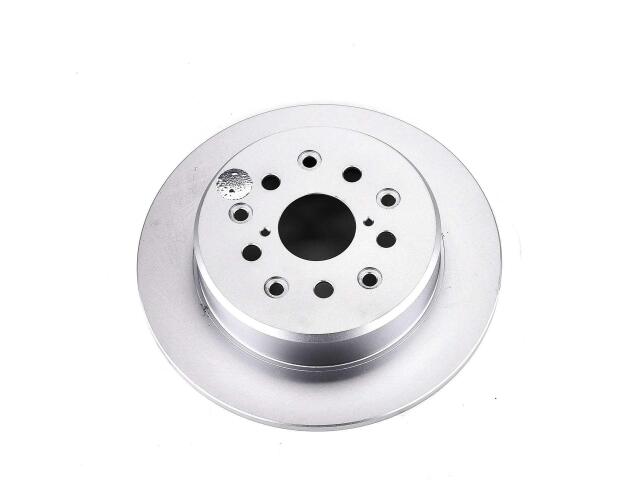

Rotor
POWER STOP : JBR739EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.41
Discard Thickness (MM): 10.50
Mounting Bolt Hole Circle Diameter (IN): 5.68
Mounting Bolt Hole Circle Diameter (MM): 144.30
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 11.90
Outside Diameter (IN): 12.09
Outside Diameter (MM): 307.00
Overall Height (IN): 2.50
Overall Height (MM): 63.50
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

LEXUS (4)
