POWER STOP
JBR579EVC

第三方数据POWER STOP : JBR579EVC

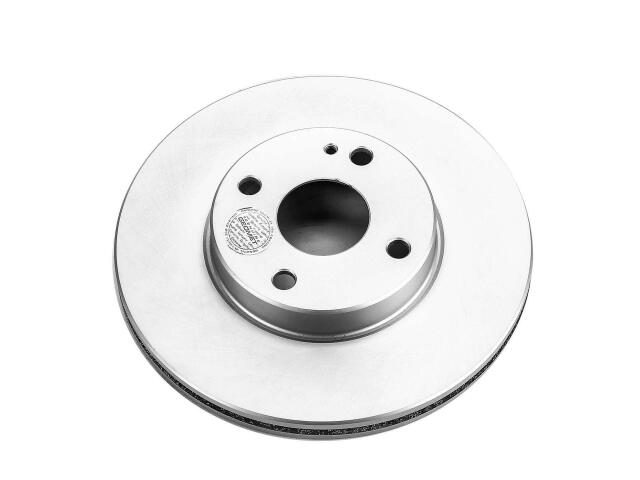

Rotor
POWER STOP : JBR579EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.71
Discard Thickness (MM): 18.00
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100.00
Nominal Thickness (IN): 0.79
Nominal Thickness (MM): 20.00
Outside Diameter (IN): 10.03
Outside Diameter (MM): 254.70
Overall Height (IN): 1.77
Overall Height (MM): 45.00
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 4
Surface Type: Smooth

适用车型

MAZDA (1)
