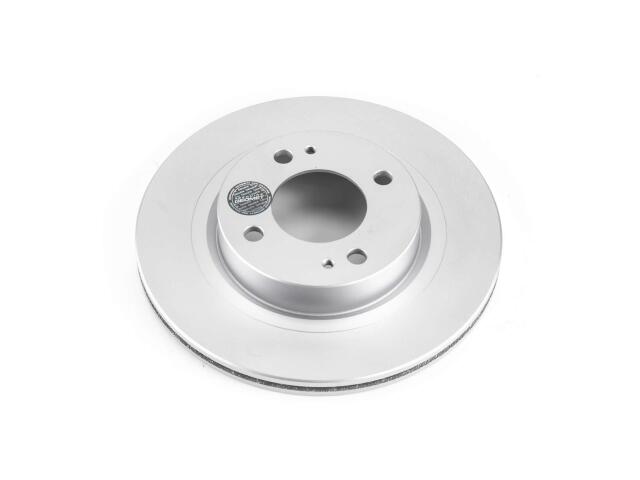

Rotor
POWER STOP : JBR1762EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.61
Discard Thickness (MM): 15.40
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100.00
Nominal Thickness (IN): 0.67
Nominal Thickness (MM): 17.10
Outside Diameter (IN): 9.89
Outside Diameter (MM): 251.20
Overall Height (IN): 1.65
Overall Height (MM): 41.80
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 4
Surface Type: Smooth

适用车型

MITSUBISHI (2)
