POWER STOP
JBR1156EVC

第三方数据POWER STOP : JBR1156EVC

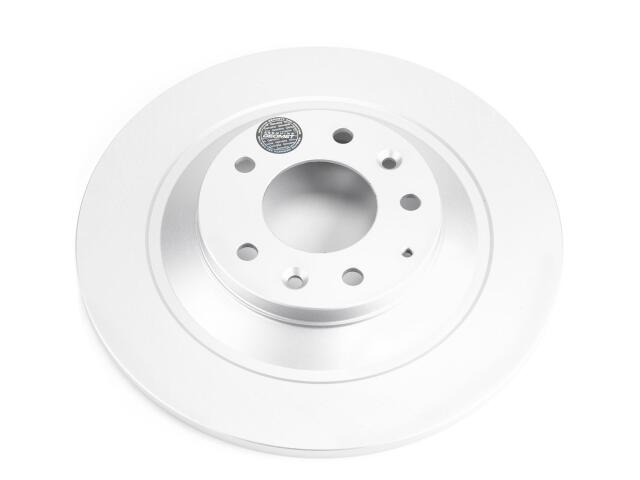

Rotor
POWER STOP : JBR1156EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.35
Discard Thickness (MM): 9.00
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 11.00
Outside Diameter (IN): 12.35
Outside Diameter (MM): 313.70
Overall Height (IN): 1.61
Overall Height (MM): 41.00
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

MAZDA (1)
