第三方数据POWER STOP : JBR1115EVC

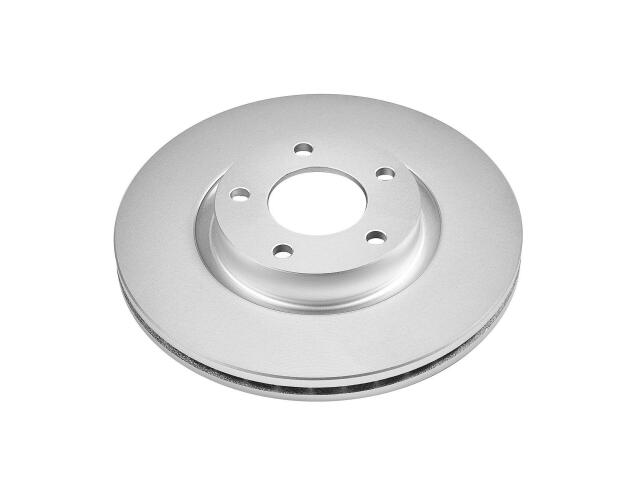

Rotor
POWER STOP : JBR1115EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.91
Discard Thickness (MM): 23.00
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 0.98
Nominal Thickness (MM): 24.90
Outside Diameter (IN): 11.80
Outside Diameter (MM): 299.80
Overall Height (IN): 1.91
Overall Height (MM): 48.50
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

MAZDA (2)
