POWER STOP
EBR808EVC

第三方数据POWER STOP : EBR808EVC

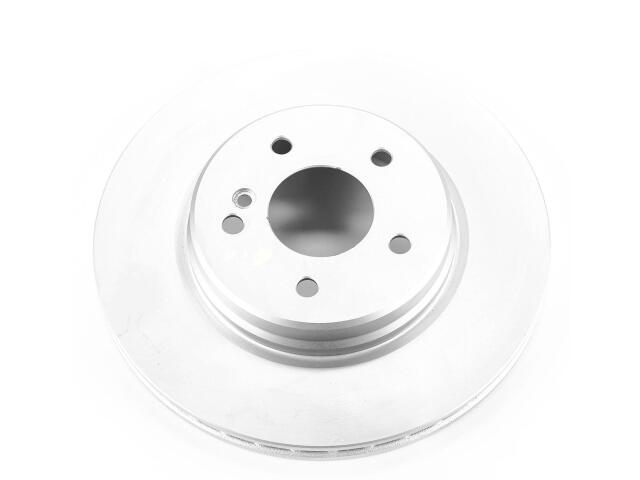

Rotor
POWER STOP : EBR808EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.76
Discard Thickness (MM): 19.40
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112.00
Nominal Thickness (IN): 0.87
Nominal Thickness (MM): 22.00
Outside Diameter (IN): 11.81
Outside Diameter (MM): 300.00
Overall Height (IN): 2.18
Overall Height (MM): 55.30
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

CHRYSLER (1)

MERCEDES-BENZ (4)
