POWER STOP
EBR1298XPR

第三方数据POWER STOP : EBR1298XPR

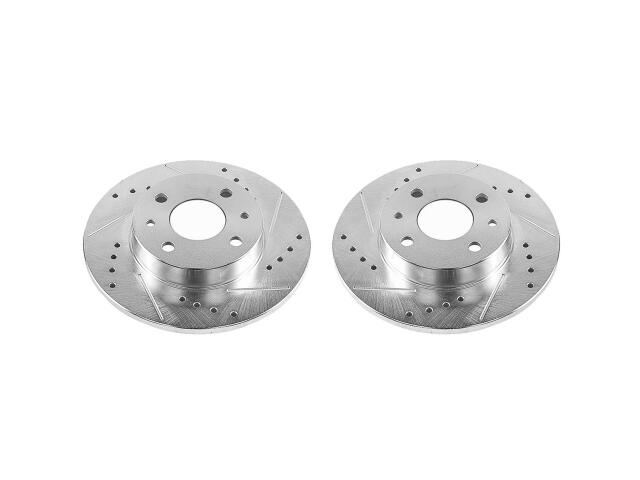

Rotor
POWER STOP : EBR1298XPR

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.36
Discard Thickness (MM): 9.20
Mounting Bolt Hole Circle Diameter (IN): 3.86
Mounting Bolt Hole Circle Diameter (MM): 98.00
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 11.00
Outside Diameter (IN): 9.47
Outside Diameter (MM): 240.50
Overall Height (IN): 1.57
Overall Height (MM): 40.00
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 4
Surface Type: Drilled & Slotted

适用车型

FIAT (1)
