POWER STOP
EBR1261EVC

第三方数据POWER STOP : EBR1261EVC

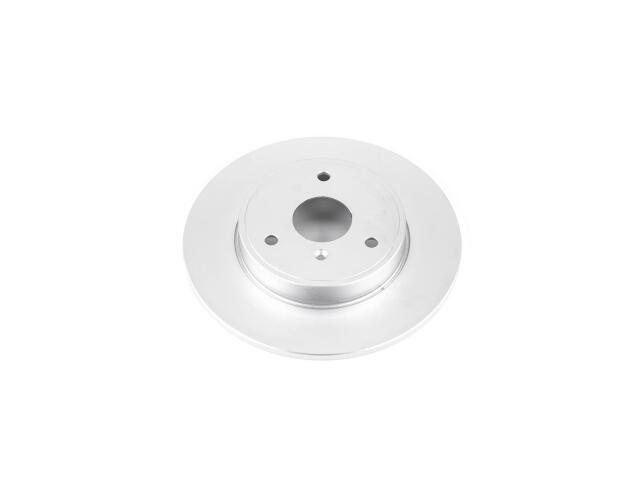

Rotor
POWER STOP : EBR1261EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.31
Discard Thickness (MM): 8.00
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112.00
Nominal Thickness (IN): 0.37
Nominal Thickness (MM): 9.50
Outside Diameter (IN): 11.01
Outside Diameter (MM): 279.70
Overall Height (IN): 1.50
Overall Height (MM): 38.20
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 3
Surface Type: Smooth

适用车型

SMART (1)
