POWER STOP
AR8793EVC

第三方数据POWER STOP : AR8793EVC

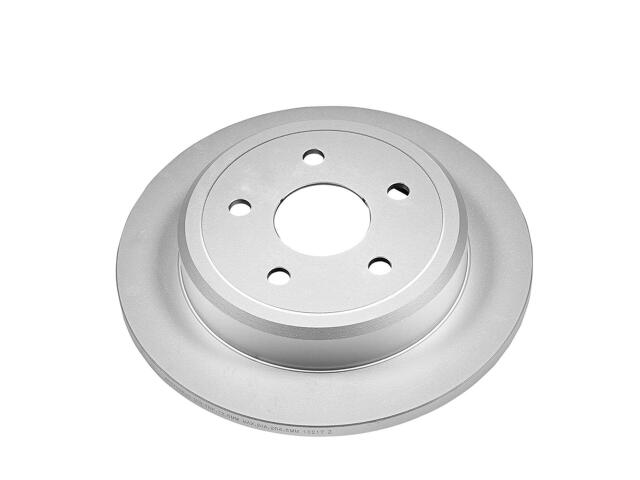

Rotor
POWER STOP : AR8793EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.49
Discard Thickness (MM): 12.50
Mounting Bolt Hole Circle Diameter (IN): 5.00
Mounting Bolt Hole Circle Diameter (MM): 127.00
Nominal Thickness (IN): 0.55
Nominal Thickness (MM): 14.00
Outside Diameter (IN): 12.60
Outside Diameter (MM): 320.00
Overall Height (IN): 2.61
Overall Height (MM): 66.20
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

JEEP (2)

GRAND CHEROKEE (4)

3.0L V6 DIESEL Turbocharged (4)

3.7L V6 (6)

4.7L V8 (6)

5.7L V8 (6)

COMMANDER (3)
