POWER STOP
AR8780EVC

第三方数据POWER STOP : AR8780EVC

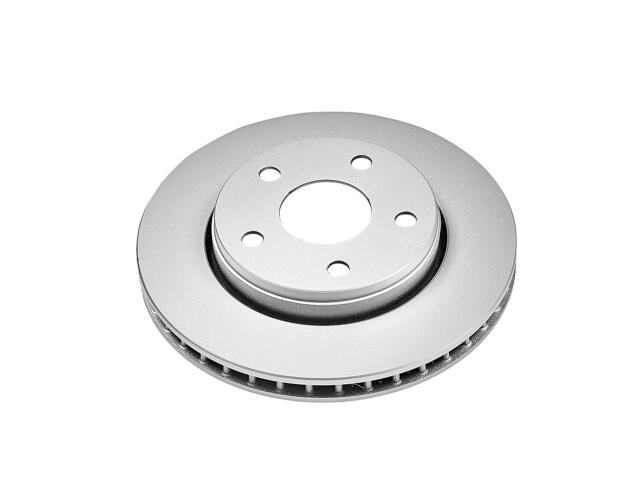

Rotor
POWER STOP : AR8780EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 1.04
Discard Thickness (MM): 26.40
Mounting Bolt Hole Circle Diameter (IN): 5.00
Mounting Bolt Hole Circle Diameter (MM): 127.00
Nominal Thickness (IN): 1.13
Nominal Thickness (MM): 28.60
Outside Diameter (IN): 11.89
Outside Diameter (MM): 302.00
Overall Height (IN): 2.17
Overall Height (MM): 55.10
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

JEEP (2)
