POWER STOP
AR8772EVC

第三方数据POWER STOP : AR8772EVC

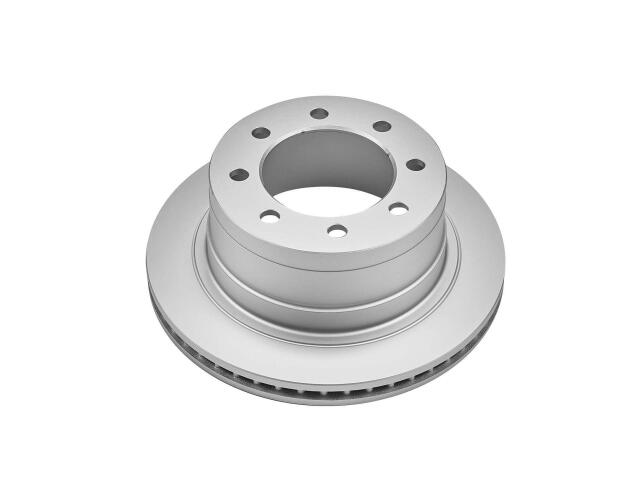

Rotor
POWER STOP : AR8772EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 1.12
Discard Thickness (MM): 28.40
Mounting Bolt Hole Circle Diameter (IN): 6.50
Mounting Bolt Hole Circle Diameter (MM): 165.10
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30.00
Outside Diameter (IN): 13.88
Outside Diameter (MM): 352.50
Overall Height (IN): 5.16
Overall Height (MM): 131.00
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 8
Surface Type: Smooth

适用车型

DODGE (3)

RAM 1500 PICKUP (3)

RAM 2500 PICKUP (3)

RAM 3500 PICKUP (3)
