POWER STOP
AR8737EVC

第三方数据POWER STOP : AR8737EVC

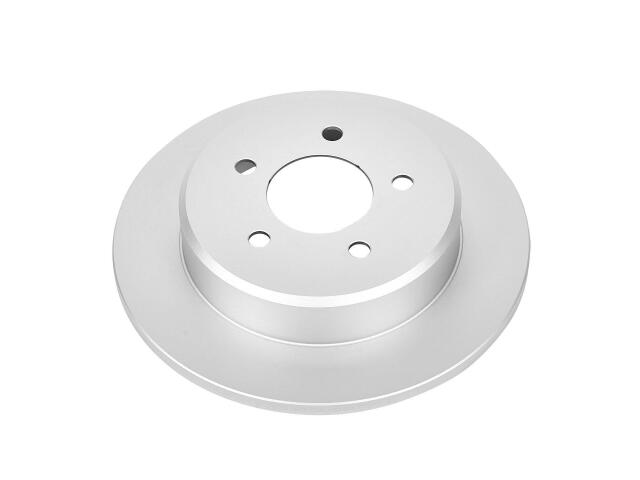

Rotor
POWER STOP : AR8737EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.44
Discard Thickness (MM): 11.30
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 0.49
Nominal Thickness (MM): 12.50
Outside Diameter (IN): 11.38
Outside Diameter (MM): 289.00
Overall Height (IN): 2.21
Overall Height (MM): 56.10
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

CHRYSLER (1)

DODGE (2)
