POWER STOP
AR8585EVC

第三方数据POWER STOP : AR8585EVC

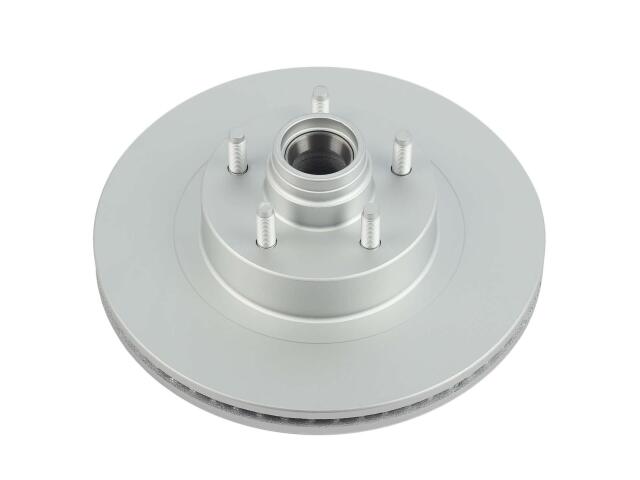

Rotor
POWER STOP : AR8585EVC

Abs Tone Ring Included: Yes
Construction: Full Cast
Discard Thickness (IN): 0.96
Discard Thickness (MM): 24.50
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 1.02
Nominal Thickness (MM): 25.80
Outside Diameter (IN): 12.01
Outside Diameter (MM): 305.00
Overall Height (IN): 4.29
Overall Height (MM): 108.90
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

FORD (1)
