第三方数据POWER STOP : AR8580XPR

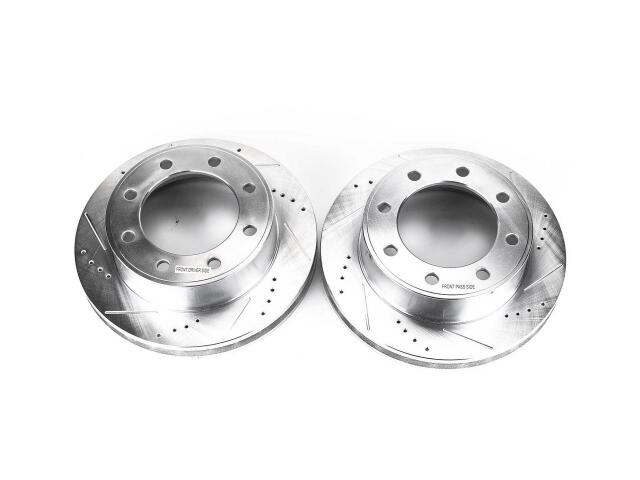

Rotor
POWER STOP : AR8580XPR

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 1.42
Discard Thickness (MM): 36.00
Mounting Bolt Hole Circle Diameter (IN): 6.84
Mounting Bolt Hole Circle Diameter (MM): 173.80
Nominal Thickness (IN): 1.50
Nominal Thickness (MM): 38.00
Outside Diameter (IN): 13.03
Outside Diameter (MM): 331.00
Overall Height (IN): 3.93
Overall Height (MM): 99.70
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 8
Surface Type: Drilled & Slotted

适用车型

FORD (1)
