POWER STOP
AR85189EVC

第三方数据POWER STOP : AR85189EVC

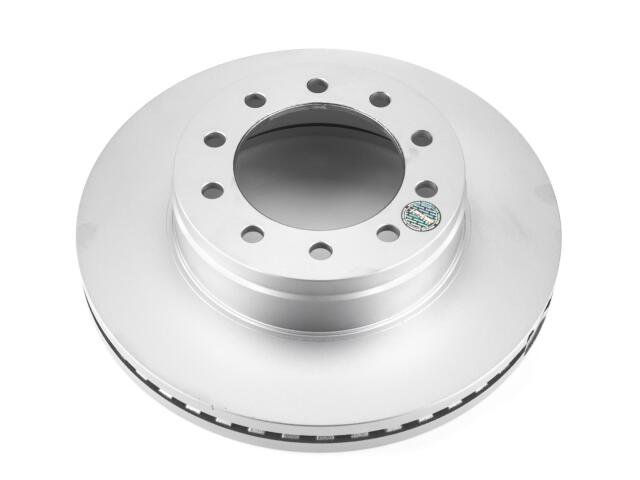

Rotor
POWER STOP : AR85189EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 1.47
Discard Thickness (MM): 37.40
Mounting Bolt Hole Circle Diameter (IN): 6.69
Mounting Bolt Hole Circle Diameter (MM): 170.00
Nominal Thickness (IN): 1.54
Nominal Thickness (MM): 39.10
Outside Diameter (IN): 15.39
Outside Diameter (MM): 390.90
Overall Height (IN): 4.00
Overall Height (MM): 101.60
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 10
Surface Type: Smooth

适用车型

FORD (3)

F-450 SUPER DUTY (3)

F-550 SUPER DUTY (3)

F-600 SUPER DUTY (2)
