POWER STOP
AR85161EVC

第三方数据POWER STOP : AR85161EVC

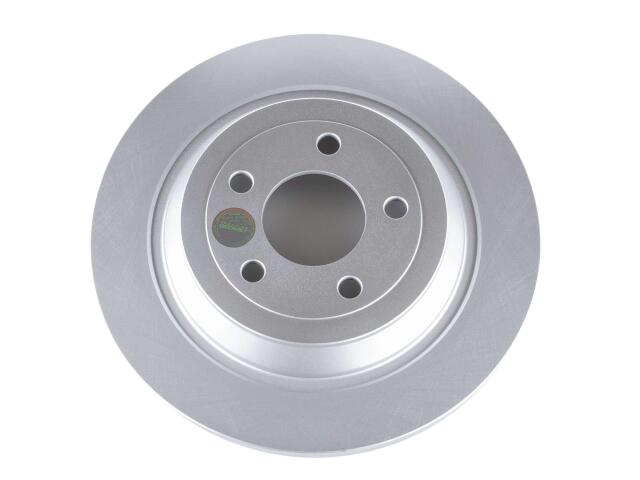

Rotor
POWER STOP : AR85161EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.39
Discard Thickness (MM): 9.90
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 0.45
Nominal Thickness (MM): 11.50
Outside Diameter (IN): 12.60
Outside Diameter (MM): 320.00
Overall Height (IN): 1.63
Overall Height (MM): 41.50
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

FORD (1)
