POWER STOP
AR85160EVC

第三方数据POWER STOP : AR85160EVC

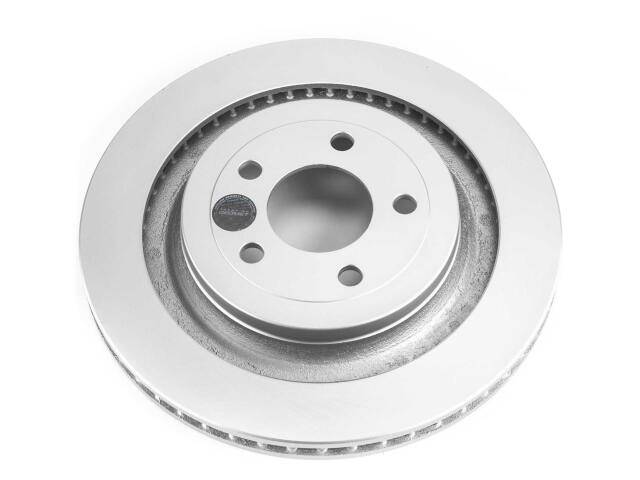

Rotor
POWER STOP : AR85160EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.93
Discard Thickness (MM): 23.50
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 0.98
Nominal Thickness (MM): 25.00
Outside Diameter (IN): 13.00
Outside Diameter (MM): 330.10
Overall Height (IN): 1.72
Overall Height (MM): 43.70
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

FORD (1)
