POWER STOP
AR85157EVC

第三方数据POWER STOP : AR85157EVC

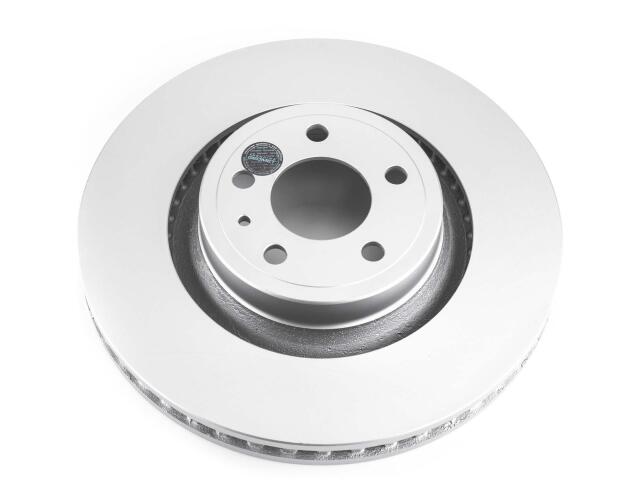

Rotor
POWER STOP : AR85157EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 1.20
Discard Thickness (MM): 30.50
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32.10
Outside Diameter (IN): 13.86
Outside Diameter (MM): 352.10
Overall Height (IN): 2.52
Overall Height (MM): 64.00
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

FORD (1)
